Audio system

Antenna


Antenna

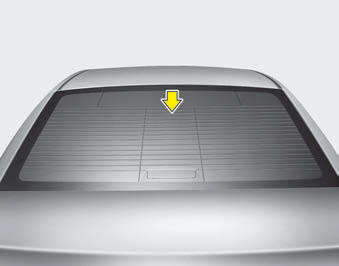

Glass antenna (if equipped)

When the radio power switch is turned on while the ignition key is in either the “ON” or “ACC” position, your car will receive both AM and FM broadcast signals through the antenna in the rear window glass.

CAUTION:


• Do not clean the inside of the rear window glass with a cleaner or scraper to remove foreign deposits as this may cause damage to the antenna elements.

• Avoid adding metallic coatings such as Ni, Cd, and so on. These can disturb receiving AM and FM broadcast signals.

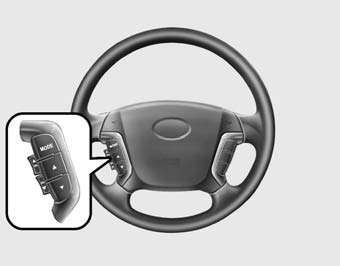

Audio remote control


Audio remote control (if equipped)

The steering wheel audio remote control button is installed to promote safe driving.

CAUTION:


Do not operate audio remote control buttons simultaneously.

VOL (▲/▼)

• Press the up button (▲) to increase volume.

• Press the down button (▼) to decease volume.

MODE

Press the button to select Radio, USB (if equipped) or CD (compact disc).

SEEK (▲/▼)

If the SEEK button is pressed for 0.8 second or more, it will work as follows in each mode.

RADIO mode

It will function as the AUTO SEEK select button.

CDP mode

It will function as the FF/REW button.

CDC mode

It will function as the DISC UP/DOWN button.

If the SEEK button is pressed for less than 0.8 second, it will work as follows in each mode.

RADIO mode

It will function as the PRESET STATION select buttons.

CDP mode

It will function as the TRACK UP/DOWN button.

DC mode

It will function as the TRACK UP/DOWN button.

Detailed information for audio control buttons is described in the following pages in this section.

How car audio works


How car audio works

AM and FM radio signals are broadcast from transmitter towers located around your city. They are intercepted by the radio antenna on your car. This signal is then received by the radio and sent to your car speakers.

When a strong radio signal has reached your vehicle, the precise engineering of your audio system ensures the best possible quality reproduction. However, in some cases the signal coming to your vehicle may not be strong and clear. This can be due to factors such as the distance from the radio station, closeness of other strong radio stations or the presence of buildings, bridges or other large obstructions in the area.

AM broadcasts can be received at


AM broadcasts can be received at greater distances than FM broadcasts.

This is because AM radio waves are transmitted at low frequencies. These long, low frequency radio waves can follow the curvature of the earth rather than travelling straight out into the atmosphere.

In addition, they curve around obstructions so that they can provide better signal coverage.

FM broadcasts are transmitted at high


FM broadcasts are transmitted at high frequencies and do not bend to follow the earth's surface. Because of this, FM broadcasts generally begin to fade at short distances from the station. Also, FM signals are easily affected by buildings, mountains, or other obstructions.

These can result in certain listening conditions which might lead you to believe a problem exists with your radio. The following conditions are normal and do not indicate radio trouble:

• Fading - As your car moves away from


• Fading - As your car moves away from the radio station, the signal will weaken and sound will begin to fade. When this occurs, we suggest that you select another stronger station.

• Flutter/Static - Weak FM signals or large obstructions between the transmitter and your radio can disturb the signal causing static or fluttering noises to occur. Reducing the treble level may lessen this effect until the disturbance clears.

• Station Swapping - As a FM signal


• Station Swapping - As a FM signal weakens, another more powerful signal near the same frequency may begin to play. This is because your radio is designed to lock onto the clearest signal. If this occurs, select another station with a stronger signal.

• Multi-Path Cancellation - Radio signals being received from several directions can cause distortion or fluttering. This can be caused by a direct and reflected signal from the same station, or by signals from two stations with close frequencies. If this occurs, select another station until the condition has passed.

Satellite radio reception

You may experience problems in receiving SIRIUS satellite radio signals in the following situations.

• If you are driving in a tunnel or a covered


• If you are driving in a tunnel or a covered parking area.

• If you are driving beneath the top level of a multi-level freeway.

• If you drive under a bridge.

• If you are driving next to a tall vechicle( such as a truck or a bus) that block the signal.

• If you are driving in a valley where the surrounding hills or peaks block the signal from the satellite.

• If you are driving on a mountain road where is blocked by mountains.

• If you are driving in an area with tall


• If you are driving in an area with tall trees that block the signal(10m or more), for example on an road that goes through a dense forset.

• The signal can become weak in some areas that are not covered by the repeater station network.

Please note that these may be other unforeseen circumstances when there are problems with the reception of SIRIUS satellite radio signal.

Using a cellular phone or a two-way radio

When a cellular phone is used inside the vehicle, noise may be produced from the audio equipment. This does not mean that something is wrong with the audio equipment. In such a case, use the cellular phone at a place as far as possible from the audio equipment.

CAUTION:


When using a communication system such a cellular phone or a radio set inside the vehicle, a separate external antenna must be fitted.

When a cellular phone or a radio set is used with an internal antenna alone, it may interfere with the vehicle's electrical system and adversely affect safe operation of the vehicle.

WARNING:


Don't use a cellular phone when you are driving. You should stop at a safe place to use a cellular phone.

Care of discs

• If the temperature inside the car is too high, open the car windows for ventilation before using your car audio.

• It is illegal to copy and use MP3/WMA files without permission. Use CDs that are created only by lawful means.

• Do not apply volatile agents such as benzene and thinner, normal cleaners and magnetic sprays made for analogue discs onto CDs.

• To prevent the disc surface from getting damaged, hold and carry CDs by the edges or the edges of the center hole only.

• Clean the disc surface with a piece of soft cloth before playback (wipe it from the center to the outside edge).

• Do not damage the disc surface or attach pieces of sticky tape or paper onto it.

• Make sure nothing other than CDs are inserted into the CD player (Do not insert more than one CD at a time).

• Keep CDs in their cases after use to protect them from scratches or dirt.

• Depending on the type of CD-R/CDRW CDs, certain CDs may not operate normally depending upon manufacturing companies or processes and recording methods. In such circumstances, if you still continue to use those CDs, they may cause the malfunction of your car audio system.

NOTICE:

- Playing an Incompatible Copy Protected Audio CD.

Some copy protected CDs, which do not comply with the international audio CD standards (Red Book), may not play on your car audio. Please note that if you try to play copy protected CDs and the CD player does not perform correctly, the CDs maybe defective, not the CD player.

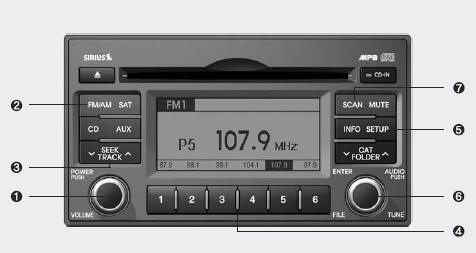

RADIO, SET UP, VOLUME, AUDIO CONTROL (PA710S, USA MODEL)

1. Power ON/OFF Button & Volume Control Knob
1. Power ON/OFF Button & Volume Control Knob 2. FM/AM Selection Button 3. Automatic Channel Selection Button 4. Preset Button
5. SETUP Button
6. Manual Channel Selection & Sound Quality Control Knob 7. SCAN Button

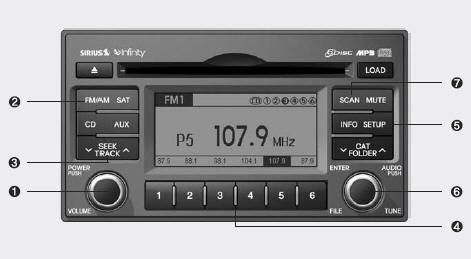

RADIO, SET UP, VOLUME, AUDIO CONTROL (PA760S, USA MODEL)

1. Power ON/OFF Button & Volume Control Knob
1. Power ON/OFF Button & Volume Control Knob 2. FM/AM Selection Button 3. Automatic Channel Selection Button 4. Preset Button
5. SETUP Button
6. Manual Channel Selection & Sound Quality Control Knob 7. SCAN Button

1. Power ON/OFF Button & Volume Control Knob

Turns the set on/off when the IGNITION SWITH is on ACC or ON. If the button is turned to the right, it increases the volume and left,decreases the volume.

2. FM/AM Selection Button

Turns to FM or AM mode, and toggles in the order of FM1 when the button is pressed each time. FM2 when the button is pressed each time. AM when the button is pressed each time. FM1...


when the button is pressed each time.

3. Automatic Channel Selection Button

• When the [SEEK it increases the band frequency to automatically] button is pressed,
it increases the band frequency to automatically select a channel. Stops at the previous frequency if no channel is found.

• When the [TRACK it reduces the band frequency to] button is pressed,
it reduces the band frequency to automatically select a channel. Stops at the previous frequency if no channel is found.

4. Preset Button

Push [1]~[6] buttons less than 0.8 second to play the channel saved in each button. Push Preset button for 0.8 second or longer to save current channel to the respective button with a beep.

5. SETUP Button

• USA MODEL (PA710S ONLY)

Press this button to turn to the SIRIUS, TEXT SCROLL and SDVC adjustment mode. If no action is taken for 5 seconds after pressing the button, it will return to the play mode. (After entering SETUP mode, move between items using the left, right and PUSH functions of the [TUNE] button.)
The setup item changes from TEXT SCROLL ↔ SDVC ↔ SAT ↔ RETURN...

• USA MODEL

Press this button to turn to the TEXT SCROLL and SDVC adjustment mode. If no action is taken for 5 seconds after pressing the button, it will return to the play mode.(After entering SETUP mode, move between items using the left, right and PUSH functions of the [TUNE] button.) The setup item changes from TEXT SCROLL ↔ SDVC ↔ RETURN...

6. Manual Channel Selection & Sound Quality Control Knob

Turn this control while listening to a radio channel to manually adjust frequency.

Turn clockwise to increase frequency and counterclockwise to reduce frequency.

Pressing the button changes the BASS, MIDDLE, TREBLE, FADER and BALANCE TUNE mode. The mode selected is shown on the display. After selecting each mode, rotate the Audio control knob clockwise or counterclockwise.

BASS Control

To increase the BASS, rotate the knob clockwise, while to decrease the BASS, rotate the knob counterclockwise.

MIDDLE Control

To increase the MIDDLE, rotate the knob clockwise, while to decrease the MIDDLE, rotate the knob counterclockwise.

TREBLE Control

To increase the TREBLE, rotate the knob clockwise, while to decrease the TREBLE, rotate the knob counterclockwise.

FADER Control

Turn the control knob clockwise to emphasize rear speaker sound (front speaker sound will be attenuated). When the control knob is turned counterclockwise, front speaker sound will be emphasized (rear speaker sound will be attenuated).

BALANCE Control

Rotate the knob clockwise to emphasize right speaker sound (left speaker sound will be attenuated). When the control knob is turned counter clockwise, left speaker sound will be emphasized (right speaker sound will be attenuated).

7. SCAN Button

If this button is pressed, the frequencies will become increased and receive the corresponding broadcasts. This function will play the frequencies for 5 seconds each and find other broadcasts as the frequency increases. Press the button again when desiring to continue listening to the currently playing broadcast.

CDP, AUX (PA710S, USA MODEL)

1. CD Loading Slot
1. CD Loading Slot
2. CD Eject Button
3. INFO Button
4. Automatic Track Selection Button 5. RANDOM Play Button
6. REPEAT Button
7. CD Selection Button
8. CD Indicator
9. FOLDER Moving Button
10. SEARCH Knob & ENTER Button 11. SCAN Play Button
12. AUX Selection Button

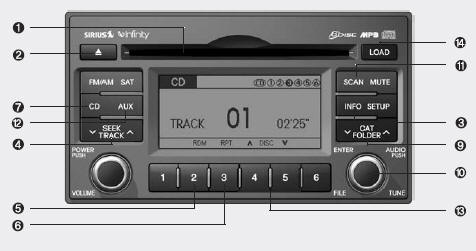

CDC, AUX (PA760S, USA MODEL)

1. CD Loading Slot
1. CD Loading Slot
2. CD Eject Button
3. INFO Button
4. Automatic Track Selection Button 5. RANDOM Play Button
6. REPEAT Button
7. CD Selection Button
9. FOLDER Moving Button
10. SEARCH Knob & ENTER Button 11. SCAN Play Button
12. AUX Selection Button 13. DISC Selection Button 14. CD LOAD Button

1. CD Loading Slot

Please face printed side upward and gently push in. When the ignition switch is on ACC or ON and power is off, power is automatically turned on if the CD is loaded. This CDP supports only 12 cm CD. If a VCD, Data CD are loaded, "Reading Error" message will appear and CD will be ejected.

2. CD Eject Button

Push button to eject the CD during CD playback. This for less than 0.8 second
to eject the CD during CD playback. This button is enabled when ignition switch is off.

• ALL EJECT (CDC Only)
Press this button for more than 0.8 second to eject all discs inside the deck in respective order.

3. INFO Button

Displays the information of the current CD TRACK (FILE) as below when the button is pressed each time.

• CDDA : DISC TITLE TRACK TITLE  TRACK ARTIST DISC ARTIST TRACK TITLE  TRACK ARTIST
TRACK TITLE TOTAL TRACK... TRACK ARTISTTOTAL TRACK...
TOTAL TRACK...

• MP3/WMA : FILE NAME ARTIST  ALBUME  FOLDER NAME TITLE ARTIST  ALBUME  FOLDER NAME
ARTIST TOTAL FILE... (not displayed if the ALBUME TOTAL FILE... (not displayed if the FOLDER NAME
information is not available on the TOTAL FILE... (not displayed if the
information is not available on the DISC.)

4. Automatic Track Selection Button

• Push [TRACK 0.8 second to play from the beginning] button for less than
0.8 second to play from the beginning of current song.

• Push [TRACK 0.8 second and press again within 1] button for less than
0.8 second and press again within 1 second to play the previous song.

• Push [TRACK or longer to initiate reverse direction] button for 0.8 second
or longer to initiate reverse direction high speed sound search of current song.

• Push [SEEK 0.8 second to play the next song.] button for less than
0.8 second to play the next song.

• Push [SEEK or longer to initiate high speed sound] button for 0.8 second
or longer to initiate high speed sound search of current song.

5. RANDOM Play Button

Press this button for less than 0.8 second to activate ‘RDM’ mode and more than 0.8 second to activate ‘ALL RDM’ mode.

• RDM : Only files/tracks in a folder/disc are played back in a random sequence.

• ALL RDM (MP3/WMA Only) : All files in a disc are played back in the random sequence.

6. REPEAT Button

Press this button for less than 0.8 second to activate ‘RPT’ mode and more than 0.8 second to activate ‘FLD RPT’ mode.

• RPT : Only a track (file) is repeatedly played back.

• FLD RPT (MP3/WMA Only) : Only files in a folder are repeatedly played back.

7. CD Selection Button

If the CD is loaded, turns to CD mode. If no CD, it displays "No Disc" for 3 seconds and returns to the previous mode.

8. CD Indicator (CDP Only)

When the ignition switch is in ACC or ON and if the CD is loaded, this indicator is lighted. If the CD is ejected the light is turned off.

9. FOLDER Moving Button

• Moves [FOLDER of the current folder and displays the] button child folder
of the current folder and displays the first song in the folder. Press TUNE/ ENTER knob to move to the folder displayed.

It will play the first song in the folder.

• Moves [CAT ], [FOLDER] button parent folder and displays], [PTY
the first song in the folder. Press], [FOLDERthe first song in the folder. Press] button parent folder and displays
the first song in the folder. Press TUNE/ENTER knob to move to the folder displayed.

10. SEARCH Knob & ENTER Button

Turn this button clockwise to display the songs next to the currently played song.

Turn the button counterclockwise to display the songs before the currently played song. Press the button to skip and play the selected song.

11. SCAN Play Button

Plays first 10 seconds of each song in the DISC. To cancel the mode, press the button once again.

12. AUX Selection Button

If the auxiliary device is connected, it turns to AUX mode from the other mode to play the sound from the auxiliary player.

If no auxiliary device is connected, it displays "NO Media" for 3 seconds and returns to the previous mode.

13. DISC Selection Button

• [DISC Changes disc to the previous disc.] Change button
Changes disc to the previous disc.

• [DISC Changes disc to the next disc.] Change button
Changes disc to the next disc.

14. CD LOAD Button

Push [LOAD] button to load CDs to available CDC deck (from 1~6). Push [LOAD] button for more than 2 seconds to load into all available decks. The last CD will play. 10 seconds idle status will disable loading process.

CAUTION:

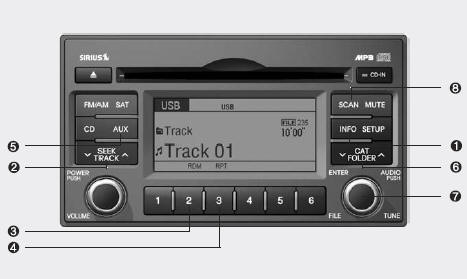

IN USING USB DEVICE.

• To use an external USB device, make sure the device is not mounted when starting up the vehicle and mount the device after starting up.

• If you start the vehicle when the USB device is mounted, it may damage the USB device. (USB is not ESA)
• If the vehicle is started up or turned off while the external USB device is connected, the external USB device may not work.

• It may not play inauthentic MP3 or WMA files.

1) It can only play MP3 files with the compression rate between 8Kbps~320Kbps.

2) It can only play WMA music files with the compression rate between 8Kbps~320Kbps.

• Take cautions for static electricity when mounting or dismounting the external USB device.

• An encoded MP3 PLAYER is not recognizable.

• Depending on the condition of the external USB device, the connected external USB device can
be unrecognizable.

• When the formatted byte/sector setting of External USB devices is not either 512BYTE or 2048BYTE, then the device will not be recognized.

• Use only a USB device formatted to FAT 12/16/32.

• USB devices without USB IF authentication may not be recognizable.

• Make sure the USB connection terminal does not come in contact with a human body or any object.

• If you repeat mounting or dismounting USB device in a short
period of time, it may break the device.

• You might hear a strange noise when mounting or dismounting a USB device.

• If you dismount the external USB device during playback in USB mode, the external USB device can be damaged or malfunction.

Therefore, mount the external USB device when the engine is turned off or in another mode.

• Depending on the type and capacity of the external USB device or the type of the files stored in the device, there is a difference in the time taken for recognition of the device, but this is not an indicator of trouble and you only have to wait.

• Do not use the USB device for other purposes than playing music files.

• Use of USB accessories such as recharger or heater using USB I/F may lower performance or cause trouble.

• If you use devices such as a USB hub you purchased separately, the vehicle’s audio system may not recognize the USB device.

Connect the USB device directly to the multimedia terminal of the vehicle.

• If USB device is divided by logical drives, only the music files on the highest-priority drive are recognized by car audio.

• Devices such as MP3 Player/ Cellular phone/Digital camera those are not recognizable by standard USB I/F can be unrecognizable.

• USB devices other than standardized goods (METAL COVER TYPE
USB) can be unrecognizable.

• USB flash memory reader (such as CF, SD, microSD, etc.) or external- HDD type devices can be
unrecognizable.

• Music files protected by DRM (DIGITAL RIGHTS MANAGEMENT) are not recognizalbe.

• The data in the USB memory may lost while using this AUDIO, It is recommeded to back up important data on a personal.

• Please avoid using USB memory products which can be used as key chains or cellular phone accessories as they could cause damage to the USB jack. Please make certain only to use plug type connector products as shown below.

USING USB (PA710S, USA MODEL)


USING USB (PA710S, USA MODEL)

1. INFO Selection Button
1. INFO Selection Button 2. TRACK Moving Button
3. RANDOM Playback Button 4. REPEAT Button
5. USB Selection Button
6. FOLDER Moving Button
7. SEARCH Knob & ENTER Button 8. SCAN Selection Button

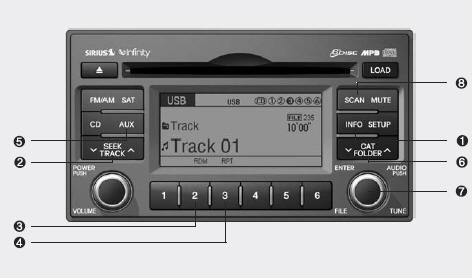

USING USB (PA760S, USA MODEL)

1. INFO Selection Button
1. INFO Selection Button 2. TRACK Moving Button
3. RANDOM Playback Button 4. REPEAT Button
5. USB Selection Button
6. FOLDER Moving Button
7. SEARCH Knob & ENTER Button 8. SCAN Selection Button

1. INFO Selection Button

Displays the information of the file currently played in the order of FILE NAME TOTAL FILE  NORMAL DISPLAY TITLE TOTAL FILE  NORMAL DISPLAY ARTIST TOTAL FILE  NORMAL DISPLAY ALBUM TOTAL FILE  NORMAL DISPLAY FOLDER
FILE NAME ... (Displays no information TOTAL FILE FILE NAME ... (Displays no information NORMAL DISPLAY
if the file has no song information.) FILE NAME if the file has no song information.)... (Displays no information
if the file has no song information.)

2.TRACK Moving Button

• Press the [TRACK than 0.8 second to play from the beginning] button for less
than 0.8 second to play from the beginning of the song currently played. Press the button for less than 0.8 second and press it again within 1 second to move and play the previous track. Press the button for 0.8 second or longer to play the song in reverse direction in fast speed.

• Press the [SEEK than 0.8 second to move to the nexttrack.] button for less
than 0.8 second to move to the nexttrack.

Press the button for 0.8 second or longer to play the song in forward direction in fast speed.

3. RANDOM Playback Button

Press this button for less than 0.8 second to activate 'RDM' mode and more than 0.8 second to activate 'ALL RDM' mode.

• RDM : Only files in a folder are played back in a random sequence.

• ALL RDM : All files in a USB memory are played back in the random sequence.

4. REPEAT Button

Press this button for less than 0.8 second to activate 'RPT' mode and more than 0.8 second to activate 'FLD RPT' mode.

• RPT : Only a file is repeatedly played back.

• FLD RPT : Only files in a folder are repeatedly played back.

5. USB Selection Button

If USB is connected, it switches to the USB mode from the other mode to play the song files stored in the USB.

If no CD and auxiliary device is not connected, it displays "NO Media" for 3 seconds and returns to the previous mode.

6. FOLDER Moving Button

• Moves [FOLDER of the current folder and displays the] button sub folder
of the current folder and displays the first song in the folder.

Press TUNE/ENTER knob to move to the folder displayed. It will play the first song in the folder.

• Moves [CAT displays the first song in the folder.] button main folder and
displays the first song in the folder.

Press TUNE/ENTER knob to move to the folder displayed.

7. SEARCH Button & ENTER Button

Turn this button clockwise to display the songs next to the currently played song.

Turn the button counterclockwise to display the songs before the currently played song.

Press the button to skip and play the selected song.

8. SCAN Selection Button

Plays 10 seconds of each song in the USB device.

Press the button once again to cancel scanning.

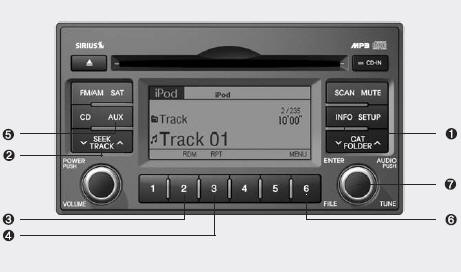

RUNNING iPod® (PA710S, USA MODEL)

1. INFO Selection Button
1. INFO Selection Button 2. TRACK Moving Button
3. RANDOM Playback Button 4. REPEAT Button
5. iPod Selection Button 6. CATEGORY Selection Button 7. SEARCH Knob & ENTER Button

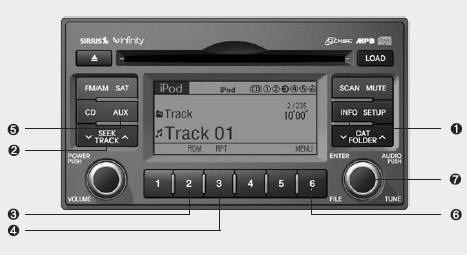

RUNNING iPod® (PA760S, USA MODEL)

1. INFO Selection Button
1. INFO Selection Button 2. TRACK Moving Button
3. RANDOM Playback Button 4. REPEAT Button
5. iPod Selection Button 6. CATEGORY Selection Button 7. SEARCH Knob & ENTER Button

In case the iPod exclusive cable is connected to the multiple terminal inside the consol on the right hand side of the driver's seat. When the iPod is connected, the 'iPod' icon will be displayed on the top left corner of the display screen.

1. INFO Selection Button

Displays the information of the file currently played in the order of TITLE ARTIST  ALBUM  NORMAL DISPLAY
ARTIST TITLE ... (Displays no information if ALBUM TITLE ... (Displays no information if NORMAL DISPLAY
the file has no song information.) TITLE the file has no song information.)... (Displays no information if
the file has no song information.)

2.TRACK Moving Button

• Press the [TRACK than 0.8 second to play from the beginning] button for less
than 0.8 second to play from the beginning of the song currently played. Press the button for less than 0.8 second and press it again within 1 second to move and play the previous track. Press the button for 0.8 second or longer to play the song in reverse direction in fast speed.

• Press the [SEEK than 0.8 second to move to the next] button for less
than 0.8 second to move to the next track. Press the button for 0.8 second or longer to play the song in forward direction in fast speed.

3. RANDOM Playback Button

Press the button for less than 0.8 second to activate or deactivate the random playback of the songs within the current category.

Press the button for longer than 0.8 second to randomly play all songs in the entire album of the iPod.

Press the button once again to cancel the mode.

4. REPEAT Button

Repeats the song currently played.

5. iPod Selection Button

If iPod is connected, it switches to the iPod mode from the CD mode to play the song files stored in the iPod. If no CD and auxiliary device is not connected, it displays "NO Media" for 3 seconds and returns to the previous mode.

6. CATEGORY Selection Button

Moves to the upper category from currentlyplayed category of the iPod.

To move to(play) the category(song) displayed, press MENU (preset6).You will be able to search through the lower category of the selected category.

The order of iPod's category is SONG, ALBUMS, ARTISTS, GENRES, and iPod.

7. SEARCH Knob & ENTER Button

When you turn the button clockwise, it will display the songs (category) next to the song currently played (category in the same level).

Also, when you turn the button counterclockwise, it will display the songs (category) before the song currently played (category in the same level).

If you want to listen to the song displayed in the song category, press the button, then it will skip to the selected song and play.

NOTICE:

FOR USING iPod DEVICE.

• Some iPod models might not support the communication protocol and the files will not be played.

(iPod models supported: Mini, 4G, Photo, Nano, 5G)
• The order of search or playback of songs in the iPod can be different from the order searched in the audio system.

• If the iPod crashes due to its own trouble, reset the iPod. (Reset: Refer to iPod manual)
• An iPod may not operate normally on low battery.

CAUTION:

IN USING iPod DEVICE.

• You need the power cable exclusive for an iPod in order to operate an iPod with the buttons on the audio system. The PC cable provided by Apple may cause a malfunction and do not use it for vehicle use.

• When connecting the device with an iPod cable, push in the jack fully to not to interfere with communication.

• When adjusting the sound effects of an iPod and the audio system, the sound effects of both devices will overlap and might reduce or distort the quality of the sound.

• Deactivate (turn off) the equalizer function of an iPod when adjusting the audio system’s volume, and turn off the equalizer of the audio system when using the equalizer of an iPod.

• When the iPod cable is connected, the system can be switched to the AUX mode even without the iPod device and can cause noise.

Disconnect the iPod cable when you are not using the iPod device.

• When the iPod is not used for the audio system, the iPod cable has to be separate from iPod devies.

Origin display of iPod may not be displayed.

SIRIUS SATELLITE RADIO INFORMATION (IF EQUIPPED)

Satellite radio channels:

SIRIUS Satellite Radio has over 130 channels, including 69 channels of 100% commercial- free music, plus sports, news, talk and entertainment available nationwide in your vehicle. For more information and a complete list of SIRIUS Satellite Radio channels, visit sirius.com in the United States, sirius-canada.ca in Canada, or call SIRIUS at 1-888-539-7474.

Satellite radio reception factors:

To receive the satellite signal, your vehicle has been equipped with a satellite radio antenna located on the roof of your vehicle. The vehicle roof provides the best location for an unobstructed, open view of the sky, a requirement of a satellite radio system. Like AM/FM, there are several factors that can affect satellite radio reception performance: • Antenna obstructions: For optimal reception performance, keep the antenna clear of snow and ice build-up and keep luggage and other material as far away from the antenna as possible.

• Terrain: Hills, mountains, tall buildings, bridges, tunnels, freeway overpasses, parking garages, dense tree foliage and thunderstorms can interfere with your reception.

SIRIUS Satellite Radio service:

SIRIUS Satellite Radio is a subscriptionbased satellite radio service that broadcasts music, sports, news and entertainment programming to radio receivers, which are available for installation in motor vehicles or factory installed, as well as for the home, portable and wireless devices, and through an Internet connection on personal computer.

Vehicles that are equipped with a factory installed SIRIUS Satellite Radio system include:
• Hardware and an introductory trial subscription term, which begins on the date of sale or lease of the vehicle.

• For a small upgrade fee, access to SIRIUS music channels, and other select channels over the Internet using any computer connected to the Internet (U.S. customers only).

For information on extended subscription terms, contact SIRIUS at 1-888- 539-7474.

NOTICE:


Satellite Radio requires SIRIUS® compatible receiver and a subscription service fee after trial period.

Vehicles without a factory-installed radio receiver require hardware purchase and installation. Please see your dealer for further details. All fees and programming subject to change.

Subscriptions governed by the SIRIUS Terms & Conditions available at www.sirius.com / serviceterms.

Available only in the 48 contiguous United States and the District of Columbia. Service available in Canada; see www.siriuscanada.ca
Chrysler LLC shall not be responsible for any such programming changes.

Satellite Radio Electronic Serial Number (ESN):

This 12-digit Satellite Serial Number is needed to re-activate, modify or track your satellite radio account.You will need this number when communicating with SIRIUS.

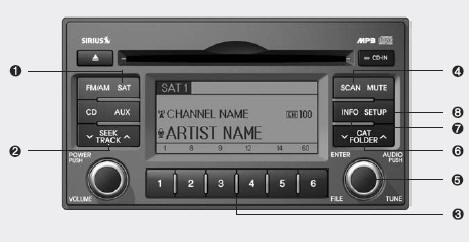

SIRIUS SATELLITE RADIO (PA710S, USA MODEL)

1. SATELLITE RADIO Selection Button
1. SATELLITE RADIO Selection Button 2. Channel Selection Button 3. Preset Selection Button 4. SCAN Button
5. TUNE Knob and ENTER Button 6. CAT/FOLDER Button
7. INFO Selection Button 8. SETUP Button

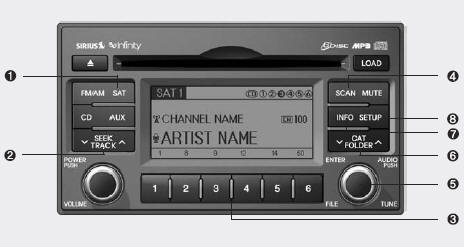

SIRIUS SATELLITE RADIO (PA760S, USA MODEL)

1. SATELLITE RADIO Selection Button
1. SATELLITE RADIO Selection Button 2. Channel Selection Button 3. Preset Selection Button 4. SCAN Button
5. TUNE Knob and ENTER Button 6. CAT/FOLDER Button
7. INFO Selection Button 8. SETUP Button

How to Use SIRIUS Satellite Radio

Your Kia vehicle is equipped with 3 months complimentary period of SIRIUS Satellite Radio so you have access to over 130 channels of music, information, and entertainment programming.

Activation

In order to extend or reactivate your subscription to SIRIUS Satellite Radio, you will need to contact SIRIUS Customer Care at 888-539-7474. Have your 12 digit SID (Sirius Identification Number)/ESN (Electronic Serial Number) ready. To retrieve the SID/ESN, turn on the radio, press the [SAT] button and tune to channel zero. Please note that the vehicle will need to be turned on, in Sirius mode, and have an unobstructed view of the sky in order for the radio to receive the activation signal.

1. SATELLITE RADIO Selection Button (SIRIUS Satellite Radio)

Press the [SAT] button to switch to SIRIUS Satellite Radio. It cycles through the different bands as noted below.

SAT1 2. Channel Selection Button SAT2 2. Channel Selection Button SAT3 2. Channel Selection Button SAT1 2. Channel Selection Button...


2. Channel Selection Button

• Press [TRACK ] button] or [SEEK
for less than 0.8 second to select] button
for less than 0.8 second to select previous or next channel.

• Press [TRACK ] button] or [SEEK
for 0.8 second or longer to continuously] button
for 0.8 second or longer to continuously move to previous or next channel.

• If "CATEGORY" Icon is displayed at the top of the screen, channel up/down is done through the channels within current category.

3. Preset Selection Button

• Push [1]~[6] buttons less than 0.8 second to play the channel saved in each button.

• Hold down the preset button for 0.8 second or longer to save current channel.

An audible beep will play to confirm the preset is stored.

4. SCAN Button

• When the button is pressed, it automatically scans the radio stations upwards.

• The SCAN feature steps through each channel, starting from the initial channel, for ten seconds.

• Press the [SCAN] button again to stop the scan feature and to listen to the currently selected channel.

• if "CATEGORY" icon is displayed at the top of the screen, channel changing is done through the channels in current category.

5. TUNE Knob and ENTER Button

While listening to SIRIUS broadcast, rotate this knob to the right or left to search other channels while listening to current channels and push this knob to select what you want to listen to.

(Turn to the right to search higher channels and left lower channels)

6. CAT/FOLDER Button

• Press [CAT ] button] or [FOLDER
to enter the Category List Mode, it displays] button
to enter the Category List Mode, it displays cateogry items and highlights the category that currently tuned channel belongs to.

• On Category List Mode, press these buttons to navigate category list.

• Press [ENTER] button to select the lowest channel in highlighted category.

• If channel is selected by selecting category "CATEGORY" Icon is displayed at the top of the screen.

7. INFO Selection Button

Displays the information of the channel currently played by in the order of Artist/ Song title Composer(if available)  Artist/Song title Category/Channel name Composer(if available)  Artist/Song title
Composer(if available) Category/Channel name ... Artist/Song title
(ART/TITLE Selection) Category/Channel name (ART/TITLE Selection)...


(ART/TITLE Selection)
Displays the information of the channel currently played by in the order of Category/Channel name title  Composer(if available)  Category Artist/Song
title /Channel name  Artist/Song title ... Composer(if available) /Channel name  Artist/Song title ... Category
/Channel name (CAT/CH Selection) (If there is no information Artist/Song title (CAT/CH Selection) (If there is no information...


(CAT/CH Selection) (If there is no information of COMPOSER NAME, it returns to main display.)

8. SETUP Button

Press this button to adjust to the SCROLL, SDVC, SIRIUS and adjustment mode.

If no action is taken for 5 seconds after pressing the button, it will return to the previous radio mode. (After entering SETUP mode, move between items using the left,right and PUSH functions of the TUNE button.)
The setup item changes from SCROLL SDVC  SIRIUS  SCROLL ...
SDVC Troubleshooting: SIRIUS Troubleshooting: SCROLL Troubleshooting:...


Troubleshooting:
1. Antenna Error.

If this message is displayed, the antenna or antenna cable is broken or unplugged. Please consult with your Kia dealership.

2. Acquiring Signal.

If this message is displayed, it means that the antenna is covered and that the SIRIUS Satellite Radio signal is not available. Ensure the antenna is uncovered and has a clear view of the sky.

    See also:

    Overview
    Kia introduced the all-new 2010 Kia Forte (pronounced for-tay) compact sedan at the 2009 Chicago Auto Show. Forte blends Kia's exciting new design direction under the tutelage of Peter Schreyer, K ...

    Trim Levels:
    2011 KIA Rio is available in two styles which include 4 door hatchback model and four door sedan. KIA Rio sedan model will be available in three trim levels which include base, LX and Sporty SX. ...

    Interior Design and Special Features
    The Sorento's interior is class-competitive in both design and materials, with a look that is restrained but sophisticated. Dashboard plastics are hard to the touch but look good. The audio and cl ...
