Defroster
CAUTION
To prevent damage to the conductors
bonded to the inside surface of
the rear window, never use sharp
instruments or window cleaners
containing abrasives to clean the
window.
NOTICE
If you want to defrost and defog the
front windshield, refer to “Windshield
defrosting and defogging” in this section.



Rear window defroster The defroster heats the window to remove frost, fog and thin ice from the rear window, while the engine is running.

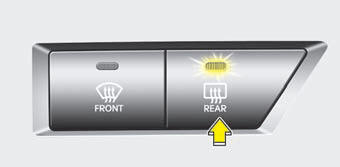

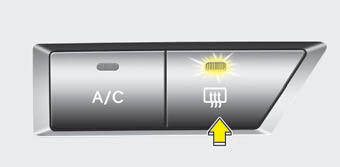

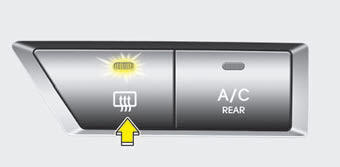

To activate the rear window defroster, press the rear window defroster button located in the center facia switch panel.
The indicator on the rear window defroster button illuminates when the defroster is ON.
If there is heavy accumulation of snow on the rear window, brush it off before operating the rear defroster.
The rear window defroster automatically turns off after approximately 20 minutes or when the ignition switch is turned off.
To turn off the defroster, press the rear window defroster button again.
Outside rearview mirror defroster
(if equipped)
If your vehicle is equipped with the outside
rearview mirror defrosters, they will
operate at the same time you turn on the
rear window defroster.
Wiper deicer (if equipped) If your vehicle is equipped with the wiper deicer, it will operate at the same time you turn on the rear window defroster.
