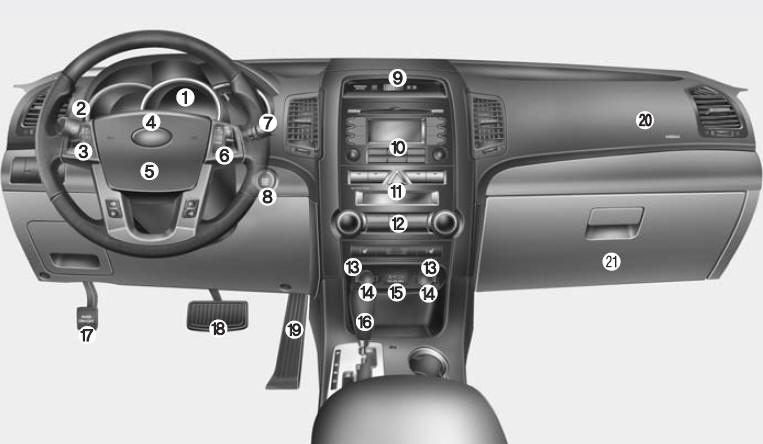

Instrument panel overview

1. Instrument cluster.................................4-
1. Instrument cluster.................................4- 2. Light control / Turn signals ...................4- 3. Steering wheel audio controls* ............4- 4. Horn .....................................................4- 5. Driver’s front air bag.............................3- 6. Auto cruise controls* ............................5- 7. Wiper/Washer switch............................4- 8. Ignition switch* or ENGINE START/STOP button*.......5-, 5- 9. Digital clock ..........................................4- 10. Audio*.................................................4- 11. Hazard warning flasher.................4-, 6- 12. Climate control system* ................4-, 4- 13. Seat heater switch* ............................3- 14. Power outlet* ......................................4- 15. AUX, USB and iPod port*...................4- 16. Shift lever ......................................5-, 5- 17. Parking brake pedal*..........................5- 18. Brake pedal ........................................5- 19. Accelerator pedal ...............................5- 20. Passenger’s front air bag* ..................3- 21. Glove box ...........................................4- * : if equipped
The actual instrument panel in the vehicle may differ from the illustration
