Manual climate control system

1. Fan speed control knob
1. Fan speed control knob 2. Mode selection knob
3. Temperature control knob 4. Air conditioning button (if equipped)
5. Air intake control button 6. Rear window defroster button (if equipped)

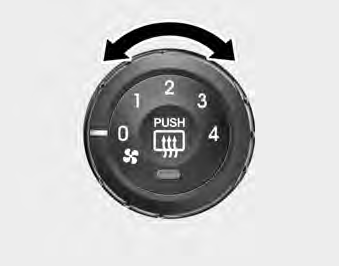

Fan speed control knob


Fan speed control knob The ignition switch must be in the ON position for fan operation.

The fan speed control knob allows you to control the fan speed of the air flowing from the ventilation system.

To change the fan speed, turn the knob to the right for higher speed or left for lower speed.

Setting the mode selection knob to the “0” position turns off the fan.

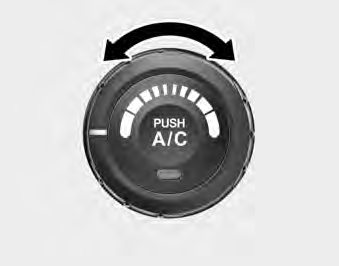

Temperature control knob


Temperature control knob The temperature control knob allows you to control the temperature of the air flowing from the ventilation system.

To change the air temperature in the passenger compartment, turn the knob to the right for warm and hot air or left for cooler air.

Mode selection knob


Mode selection knob

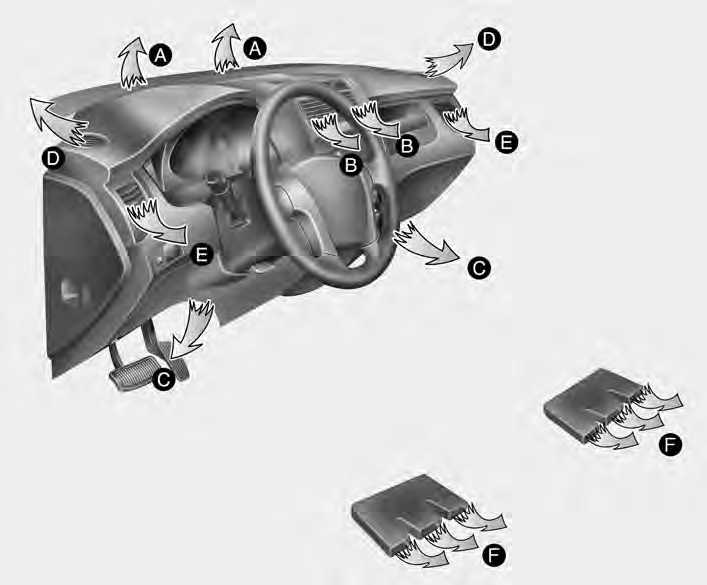

The mode selection knob controls the direction of the air flow through the ventilation system.

The steps (•) between the air flow positions adjust the direction of the air flow to the middle position.

MAX/ A/C position


MAX/ A/C position
When you select the MAX
A/C mode while the fan
speed is on, the following system settings will be
made automatically;
• the air conditioning system will be turned on.

• the recirculated air position will be selected.

• the face mode will be
selected.

If you select MAX A/C
mode, you will not be able to cancel the A/C system operation, or change the recirculated air mode position.

Set the fan speed control knob to the desired speed and rotate the temperature control knob to the
extreme left position for maximum cooling.

(outlet port: , )
Face position
Air flow is directed toward the upper body and face.

Additionally, each outlet can be controlled to direct the air discharged from
the outlet.

(outlet port: , )
Face - floor position
Air flow is directed towards the face and the floor. The air to the floor is warmer than the air to the face (except when the temperature control is set to the
extreme cold position).

(outlet port: , , , )
OFF position
The climate control system is turned off.

Floor position
Most of the air flow is
directed to the floor, with a small amount of the air
being directed to the windshield and side window
defroster.

(outlet port: , , , , )
Floor - defrost position Most of the air flow is
directed to the floor and the windshield with a
small amount directed to the side window
defrosters.

(outlet port: , , , , )
Defrost position
Most of the air flow is
directed to the windshield with a small amount of air directed to the side window defrosters.

(outlet port: , , )

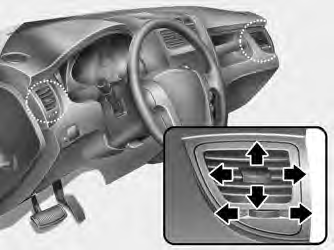

Instrument panel vents


Instrument panel vents If air flow control is not satisfactory, check the instrument panel vents.

The outlet port ( ) can be opened or closed separately using the horizontal thumbwheel. To close the vent, rotate it left to the maximum position. To open the vent, rotate it right to the desired position.

Also, you can adjust the direction of air delivery from these vents using the vent control lever as shown.

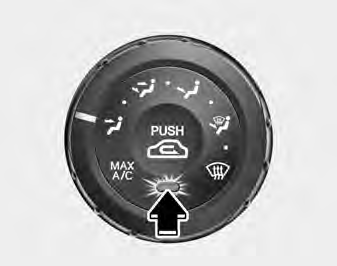

Air intake control button


Air intake control button This is used to select outside (fresh) air position or recirculated air position.

To change the air intake control position, push the control button.

Recirculated air position The indicator light on the button is illuminated when the recirculated air position is selected.

With the recirculated air position selected, air from passenger compartment
will be drawn through the heating system and heated or cooled according to
the function selected.

Outside (fresh) air position The indicator light on the button is not illuminated when the outside (fresh) air position is selected.

With the outside (fresh) air position selected, air
enters the vehicle from
outside and is heated or cooled according to the
function selected.

It should be noted that prolonged operation of the heating in recirculated air position will cause fogging of the windshield and side windows and the air within the passenger compartment will become stale.

In addition, prolonged use of the air conditioning with the “recirculated air position” selected, will result in excessively dry air in the passenger compartment.

WARNING - Recirculated air
• Continued climate control system operation in the recirculated air position may allow
humidity to increase inside vehicle which may fog the glass and obscure visibility.

• Continued climate control system operation in the recirculated air position can result
in somewhat reduced oxygen levels, causing drowsiness or sleepiness, and loss of vehicle control. Set the air intake control to the outside (fresh) air position as much as possible while driving.

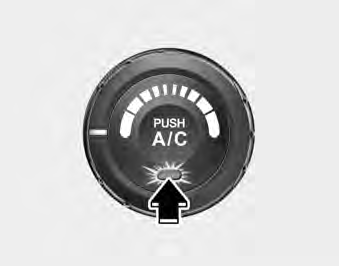

Air conditioning button


Air conditioning button (if equipped)
Push the A/C button to turn the air conditioning system on (indicator light will illuminate). Push the button again to turn the air conditioning system off.

System operation
Ventilation
1. Set the mode to the position.

2. Set the air intake control to the outside (fresh) air position.

3. Set the temperature control to the desired position.

4. Set the fan speed control to the desired speed.

Heating
1. Set the mode to the position.

2. Set the air intake control to the outside (fresh) air position.

3. Set the temperature control to the desired position.

4. Set the fan speed control to the desired speed.

5. If dehumidified heating is desired, turn the air conditioning system (if equipped) on.

• If cool air is desired at face level for bi-level operation, set the mode to the position.

• If the windshield fogs up, set the mode to the , position.

Air conditioning (if equipped) All Kia Air Conditioning Systems are filled with environmentally friendly R-134a refrigerant which is not damaging to the ozone layer.

1. Start the engine. Push the air conditioning button.

2. Set the mode to the position.

3. Set the air intake control to the outside air or recirculated air position.

4. Set the temperature control knob to the desired position.

5. Set the fan speed control to the desired speed.

6. Adjust the fan speed control and temperature control to maintain maximum comfort.

• If warmer air is desired at floor level for bi-level operation, set the mode to the position and adjust the temperature control to maintain maximum comfort.

• When maximum cooling is desired, set the temperature control to the extreme left position, set the air intake control to the recirculated air position, then set the fan speed control to the highest speed.

NOTICE
• When using the air conditioning system, monitor the temperature gauge closely while driving up hills or in heavy traffic when outside temperatures are high. Air conditioning system operation may cause engine overheating.

Continue to use the blower fan but turn the air conditioning system off if the temperature gauge indicates engine overheating.

• When opening the windows in humid weather air conditioning may create water droplets inside the vehicle. Since excessive water droplets may cause damage to electrical equipment, air conditioning should only be run with
the windows closed.

Air conditioning system operation tips
• If the vehicle has been parked in direct sunlight during hot weather, open the windows for a short time to let the hot air inside the vehicle escape.

• To help reduce moisture inside of windows on rainy humid days, decrease the humidity inside the vehicle by operating the air conditioning system.

• During air conditioning system operation, you may occasionally notice a slight change in engine speed at idle as the air conditioning compressor cycles on. This is a normal system operation characteristics.

• Use the air conditioning system every month if only for a few minutes to ensure maximum system performance.

• When using the air conditioning system, you may notice clear water dripping (or even pudding) on the ground under the passenger side of the vehicle. This is a normal system operation characteristics.

• The air conditioning system includes a function that automatically turns the air conditioning compressor off if engine coolant temperature approaches an over heating level. The air conditioning compressor operation will resume once engine coolant temperature returns to the normal range. Also, the air conditioning compressor is automatically turned off for a few seconds when the accelerator is fully depressed (wide open throttle).

• When operating the air conditioning system use the outside (fresh) air position.

• Operating the air conditioning system in the recirculated air position does provide maximum cooling, however, continual operation in this mode may cause the air inside the vehicle to become stale.

Checking the amount of air conditioner refrigerant and compressor lubricant
When the amount of refrigerant is low, the performance of the air conditioning is reduced. Overfilling also has a bad influence on the air conditioning system.

Therefore, if abnormal operation is found, have the system inspected by an authorized Kia dealer.

CAUTION
The air conditioner refrigerant container is highly pressurized.

Therefore it should be serviced by an authorized Kia dealer.

Improper service may cause serious injury.

NOTICE
When the performance of the air conditioning system is reduced it is important that the correct type and amount of oil and refrigerant is used. Otherwise, damage to the compressor and abnormal system operation may occur.
