Exterior feature

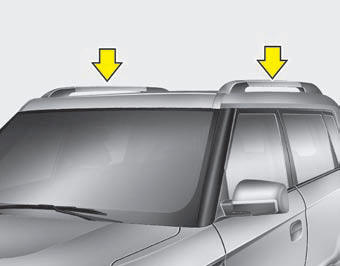

Roof rack (if equipped) If the vehicle has a roof rack, you can load cargo on top of your vehicle.
NOTICE
If the vehicle is equipped with a sunroof,
be sure not to position cargo onto the
roof rack in such a way that it could
interfere with sunroof operation.
CAUTION
• When carrying cargo on the roof
rack, take the necessary precautions
to make sure the cargo does
not damage the roof of the vehicle.
• When carrying large objects on the roof rack, make sure they do not exceed the overall roof length or width.
WARNING
• The following specification is the
maximum weight that can be
loaded onto the roof rack.
Distribute the load as evenly as possible on the roof rack and secure the load firmly.
Loading cargo or luggage in excess of the specified weight limit on the roof rack may damage your vehicle.
• The vehicle center of gravity will be higher when items are loaded onto the roof rack. Avoid sudden starts, braking, sharp turns, abrupt maneuvers or high speeds that may result in loss of vehicle control or rollover resulting in an accident.
• Always drive slowly and turn corners
carefully when carrying
items on the roof rack. Severe
wind updrafts, caused by passing
vehicles or natural causes, can
cause sudden upward pressure
on items loaded on the roof rack.
This is especially true when carrying large, flat items such as wood panels or mattresses. This could cause the items to fall off the roof rack and cause damage to your vehicle or others around you.
• To prevent damage or loss of cargo while driving, check frequently before or while driving to make sure the items on the roof rack are securely fastened.
