Audio system

AM and FM radio signals are broadcast


AM and FM radio signals are broadcast from transmitter towers located around your city. They are intercepted by the radio antenna on your car. This signal is then received by the radio and sent to your car speakers.

When a strong radio signal has reached your vehicle, the precise engineering of your audio system ensures the best possible quality reproduction. However, in some cases the signal coming to your vehicle may not be strong and clear. This can be due to factors such as the distance from the radio station, closeness of other strong radio stations or the presence of buildings, bridges or other large obstructions in the area.

AM broadcasts can be received at greater distances than FM broadcasts.

This is because AM radio waves are


This is because AM radio waves are transmitted at low frequencies. These long, low frequency radio waves can follow the curvature of the earth rather than travelling straight out into the atmosphere.

In addition, they curve around obstructions so that they can provide better signal coverage.

FM broadcasts are transmitted at high


FM broadcasts are transmitted at high frequencies and do not bend to follow the earth's surface. Because of this, FM broadcasts generally begin to fade at short distances from the station. Also, FM signals are easily affected by buildings, mountains, or other obstructions.

These can result in certain listening conditions which might lead you to believe a problem exists with your radio. The following conditions are normal and do not indicate radio trouble:

• Fading - As your car moves away from


• Fading - As your car moves away from the radio station, the signal will weaken and sound will begin to fade. When this occurs, we suggest that you select another stronger station.

• Flutter/Static - Weak FM signals or large obstructions between the transmitter and your radio can disturb the signal causing static or fluttering noises to occur. Reducing the treble level may lessen this effect until the disturbance clears.

• Station Swapping - As a FM signal


• Station Swapping - As a FM signal weakens, another more powerful signal near the same frequency may begin to play. This is because your radio is designed to lock onto the clearest signal. If this occurs, select another station with a stronger signal.

• Multi-Path Cancellation - Radio signals being received from several directions can cause distortion or fluttering. This can be caused by a direct and reflected signal from the same station, or by signals from two stations with close frequencies. If this occurs, select another station until the condition has passed.

Satellite radio reception You may experience problems in receiving SIRIUS satellite radio signals in the following situations.

• If you are driving in a tunnel or a covered


• If you are driving in a tunnel or a covered parking area.

• If you are driving beneath the top level of a multi-level freeway.

• If you drive under a bridge.

• If you are driving next to a tall vechicle( such as a truck or a bus) that block the signal.

• If you are driving in a valley where the surrounding hills or peaks block the signal from the satellite.

• If you are driving on a mountain road where is blocked by mountains.

• If you are driving in an area with tall


• If you are driving in an area with tall trees that block the signal(10m or more), for example on an road that goes through a dense forset.

• The signal can become weak in some areas that are not covered by the repeater station network.

Please note that these may be other unforeseen circumstances when there are problems with the reception of SIRIUS satellite radio signal.

Using a cellular phone or a twoway radio
When a cellular phone is used inside the vehicle, noise may be produced from the audio equipment. This does not mean that something is wrong with the audio equipment. In such a case, use the cellular phone at a place as far as possible from the audio equipment.

CAUTION
When using a communication system such a cellular phone or a radio set inside the vehicle, a separate external antenna must be fitted.

When a cellular phone or a radio set is used with an internal antenna alone, it may interfere with the vehicle's electrical system and adversely affect safe operation of the vehicle.

WARNING
Don’t use a cellular phone when you are driving. You must stop at a safe place to use a cellular phone.

Care of disc (if equipped) • If the temperature inside the car is too high, open the car windows for ventilation before using your car audio.

• It is illegal to copy and use MP3/WMA/AAC/WAVE files without permission. Use CDs that are created only by lawful means.

• Do not apply volatile agents such as benzene and thinner, normal cleaners and magnetic sprays made for analogue disc onto CDs.

• To prevent the disc surface from getting damaged. Hold and carry CDs by the edges or the edges of the center hole only.

• Clean the disc surface with a piece of soft cloth before playback (wipe it from the center to the outside edge.) • Do not damage the disc surface or attach pieces of sticky tape or paper onto it.

• Make sure on undesirable matter other than CDs are inserted into the CD player (Do not insert more than one CD at a time).

• Keep CDs in their cases after use to protect them from scratches or dirt.

• Depending on the type of CD-R/CDRW CDs, certain CDs may not operate normally according to manufacturing companies or making and recording methods. In such circumstances, if you still continue to use those CDs, they may cause the malfunction of your car audio system.

NOTICE - Playing an
Incompatible Copy-Protected Audio CD
Some copy-protected CDs, which do not comply with the international audio CD standards(Red Book), may not play on your car audio. Please note that if you try to play copy protected CDs and the CD player of your car audio is not performing to your expectation, this may be caused by those CDs and not a defect in the device itself. Please replace those CDs.

SIRIUS SATELLITE RADIO INFORMATION (IF EQUIPPED) Satellite radio channels: SIRIUS Satellite Radio has over 130 channels, including 69 channels of 100% commercial- free music, plus sports, news, talk and entertainment available nationwide in your vehicle. For more information and a complete list of SIRIUS Satellite Radio channels, visit sirius.com in the United States, sirius-canada.ca in Canada, or call SIRIUS at 1-888-539-7474.

Satellite radio reception factors: To receive the satellite signal, your vehicle has been equipped with a satellite radio antenna located on the roof of your vehicle. The vehicle roof provides the best location for an unobstructed, open view of the sky, a requirement of a satellite radio system. Like AM/FM, there are several factors that can affect satellite radio reception performance: • Antenna obstructions: For optimal reception performance, keep the antenna clear of snow and ice build-up and keep luggage and other material as far away from the antenna as possible.

• Terrain: Hills, mountains, tall buildings, bridges, tunnels, freeway overpasses, parking garages, dense tree foliage and thunderstorms can interfere with your reception.

SIRIUS Satellite Radio service: SIRIUS Satellite Radio is a subscriptionbased satellite radio service that broadcasts music, sports, news and entertainment programming to radio receivers, which are available for installation in motor vehicles or factory installed, as well as for the home, portable and wireless devices, and through an Internet connection on personal computer.

Vehicles that are equipped with a factory installed SIRIUS Satellite Radio system include:
• Hardware and an introductory trial subscription term, which begins on the date of sale or lease of the vehicle.

• For a small upgrade fee, access to SIRIUS music channels, and other select channels over the Internet using any computer connected to the Internet (U.S. customers only).

For information on extended subscription terms, contact SIRIUS at 1-888- 539-7474.

NOTICE
Satellite Radio requires SIRIUS® compatible receiver and a subscription service fee after trial period.

Vehicles without a factory-installed radio receiver require hardware purchase and installation. Please see your dealer for further details. All fees and programming subject to change.

Subscriptions governed by the SIRIUS Terms & Conditions available at www.sirius.com / serviceterms.

Available only in the 48 contiguous United States and the District of Columbia. Service available in Canada; see www.siriuscanada.ca
Chrysler LLC shall not be responsible for any such programming changes.

Satellite Radio Electronic Serial Number (ESN): This 12-digit Satellite Serial Number is needed to re-activate, modify or track your satellite radio account.You will need this number when communicating with SIRIUS.

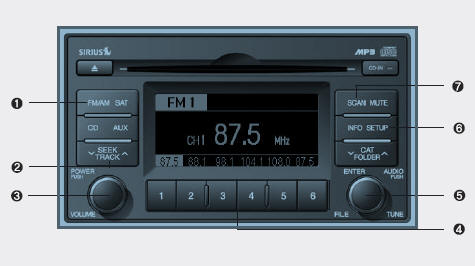

RADIO, SET UP, VOLUME, AUDIO CONTROL(PA910L, SIRIUS SATELLITE RADIO MODEL)
RADIO, SET UP, VOLUME, AUDIO CONTROL(PA910L, SIRIUS SATELLITE RADIO MODEL) (IF EQUIPPED)


1. FM/AM Selection Button 2. Automatic Channel Selection Button 3. Power ON/OFF Button & Volume Control Knob 4. Preset Button
5. Manual Channel Selection & Sound Quality Control Knob 6. SETUP Button
7. SCAN Button

1. FM/AM Selection Button Turns to FM or AM mode, and toggles in the order of FM1 ➟ FM2 ➟ AM ➟ FM1...

when the button is pressed each time.

2. Automatic Channel Selection Button
• When the [SEEK ] button is pressed, it increases the band frequency to automatically select a channel. Stops at the previous frequency if no channel is found.

• When the [TRACK ] button is pressed, it reduces the band frequency to automatically select a channel. Stops at the previous frequency if no channel is found.

3. Power ON/OFF Button & Volume Control Knob
Turns the set on/off when the IGNITION SWITH is on ACC or ON. If the button is turned to the right, it increases the volume and left,decreases the volume.

4. Preset Button
Push [1]~[6] buttons less than 0.8 second to play the channel saved in each button. Push [Preset] button for 0.8 second or longer to save current channel to the respective button with a beep.

5. Manual Channel Selection & Sound Quality Control Knob Turn this control while listening to a radio channel to manually adjust frequency.

Turn clockwise to increase frequency and counterclockwise to reduce frequency.

Pressing the button changes the BASS, MIDDLE, TREBLE, FADER and BALANCE TUNE mode. The mode selected is shown on the display. After selecting each mode, rotate the Audio control knob clockwise or counterclockwise.

BASS Control
To increase the BASS, rotate the knob clockwise, while to decrease the BASS, rotate the knob counterclockwise.

MIDDLE Control
To increase the Midrange, rotate the knob clockwise, while to decrease the Midrange, rotate the knob counterclockwise.

TREBLE Control
To increase the TREBLE, rotate the knob clockwise, while to decrease the TREBLE, rotate the knob counterclockwise.

FADER Control
Turn the control knob clockwise to emphasize rear speaker sound(front speaker sound will be attenuated). When the control knob is turned counterclockwise, front speaker sound will be emphasized( rear speaker sound will be attenuated).

BALANCE Control
Rotate the knob clockwise to emphasize right speaker sound(left speaker sound will be attenuated). When the control knob is turned counter clockwise, left speaker sound will be emphasized(right speaker sound will be attenuated).

6. SETUP Button
Press this button to access the SIRIUS option, TEXT SCROLL, and adjustment mode. If no action is taken for 5 seconds after pressing the button, it will return to the play mode.(After entering SETUP mode, move between items using the left, right and PUSH functions of the [TUNE] button.) The setup item changes from TEXT SCROLL ➟ SATELLITE ➟ RETURN ➟ SIRIUS...

7. SCAN Button
If this button is pressed, the frequencies will become increased and receive the corresponding broadcasts. This function will play the frequencies for 5 seconds each and find other broadcasts as the frequency increases. Press the button again when desiring to continue listening to the currently playing broadcast.

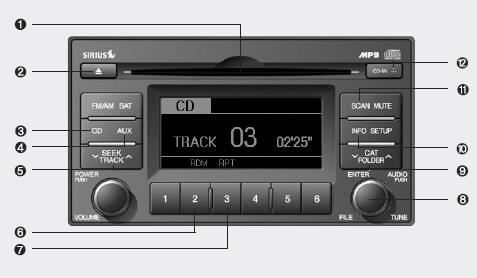

CDP, AUX(PA910L, SIRIUS SATELLITE RADIO MODEL) (IF EQUIPPED)
CDP, AUX(PA910L, SIRIUS SATELLITE RADIO MODEL) (IF EQUIPPED)

1. CD Loading Slot
2. CD Eject Button
3. CD Selection Button
4. AUX Selection Button
5. Automatic Track Selection Button 6. RANDOM Play Button
7. REPEAT Button
8. SEARCH Knob & ENTER Button 9. FOLDER Moving Button
10. INFO Button
11. SCAN Play Button
12. CD Indicator

1. CD Loading Slot
Please face printed side upward and gently push in. When the ignition switch is on ACC or ON and power is off, power is automatically turned on if the CD is loaded.This CDP supports only 12cm CD.

If a VCD, Data CD are loaded, "Reading Error" message will appear and CD will be ejected.

2. CD Eject Button
Push button to eject the CD. This button is enabled when ignition switch is off.

3. CD Selection Button
If the CD is loaded, turns to CD mode. If no CD, it displays "No Disc" for 3 seconds and returns to th previous mode.

4. AUX Selection Button
If the auxiliary device is connected, it turns to AUX mode from the other mode to play the sound from the auxiliary player.

If no auxiliary device is connected, it displays "NO Media" for 3 seconds and returns to the previous mode.

5. Automatic Track Selection Button
• Push [TRACK ] button for less than 0.8 second to play from the beginning of current song.

• Push [TRACK ] button for less than 0.8 second and press again within 1 seconds to play the previous song.

• Push [TRACK ] button for 0.8 or longer to initiate reverse direction high speed sound search of current song.

• Push [SEEK ] button for less than 0.8 second to play the next song.

• Push [SEEK ] button for 0.8 or longer to initiate high speed sound search of current song.

6. RANDOM Play Button
Press this button for less than 0.8 second to activate ‘RDM’ mode and more than 0.8 second to activate ‘ALL RDM’ mode.

• RDM : Only files/tracks in a folder/disc are played back in a random sequence.

• ALL RDM(MP3/WMA Only) : All files in a disc are played back in the random sequence.

7. REPEAT Button
Press this button for less than 0.8 second to activate ‘RPT’ mode and more than 0.8 second to activate ‘FLD RPT’ mode.

• RPT : Only a track(file) is repeatedly played back.

• FLD RPT(MP3/WMA Only) : Only files in a folder are repeatedly played back.

8. SEARCH Knob & ENTER Button
Turn this button clockwise to display the songs next to the currently played song.

Turn the button counterclockwise to display the songs before the currently played song. Press the button to skip and play the selected song.

9. FOLDER Moving Button
• Moves [FOLDER ] button child folder of the current folder and displays the first song in the folder. Press TUNE/ ENTER knob to move to the folder displayed.

It will play the first song in the folder.

• Moves [CAT ], button parent folder and displays the first song in the folder.

Press TUNE/ENTER knob to move to the folder displayed.

10. INFO Button
Displays the information of the current CD TRACK(FILE) as indicated below when the button is pressed each time.

• CDDA : DISC TITLE ➟ DISC ARTIST ➟ TRACK TITLE ➟ TRACK ARTIST ➟ TOTAL TRACK...

• MP3/WMA : FILE NAME ➟ TITLE ➟ ARTIST ➟ ALBUME ➟ FOLDER NAME ➟ TOTAL FILE... (not displayed if the information is not available on the DISC.)
11. SCAN Play Button
Plays first 10 seconds of each song in the DISC. To cancel the mode, press the button once again.

12. CD Indicator
When the ignition switch is in ACC or ON and if the CD is loaded, this indicator is lighted. If the CD is ejected the light is turned off.

CAUTION IN USING
USB DEVICE
• To use an external USB device, make sure the device is not mounted when starting up the vehicle and mount the device after starting up.

• If you start the vehicle when the USB device is mounted, it may damage the USB device. (USB is not ESA)
• If the vehicle is started up or turned off while the external USB device is connected, the external USB device may not work.

• It may not play inauthentic MP3 or WMA files.

1) It can only play MP3 files with the compression rate between 8Kbps~320Kbps.

2) It can only play WMA music files with the compression rate between 8Kbps~320Kbps.

• Take cautions for static electricity when mounting or dismounting the external USB device.

• An encoded MP3 player is not recognizable.

• Depending on the condition of the external USB device, the connected external USB device can
be unrecognizable.

• When the formatted byte/sector setting of External USB devices is not either 512BYTE or 2048BYTE, then the device will not be recognized.

• Use only a USB device formatted to FAT 12/16/32.

• USB devices without USB I/F authentication may not be recognizable.

• Make sure the USB connection terminal does not come in contact with a human body or any object.

• If you repeat mounting or dismounting USB device in a short
period of time, it may break the device.

• You might hear a strange noise when mounting or dismounting a USB device.

• If you dismount the external USB device during playback in USB mode, the external USB device can be damaged or malfunction.

Therefore, mount the external USB device when the engine is turned off or in another mode.

• Depending on the type and capacity of the external USB device or the type of the files stored in the device, there is a difference in the time taken for recognition of the device, but this is not an indicator of trouble and you only have to wait.

• Do not use the USB device for other purposes than playing music files.

• Use of USB accessories such as recharger or heater using USB I/F may lower performance or cause trouble.

• If you use devices such as a USB hub you purchased separately, the vehicle’s audio system may not recognize the USB device.

Connect the USB device directly to the multimedia terminal of the vehicle.

• If USB device is divided by logical drives, only the music files on the highest-priority drive are recognized by the car audio.

• Devices, such as MP3 players, cellular phones, or digital cameras not recognized by standard USB I/F may not be recognized.

• USB devices other than standardized goods (METAL COVER TYPE
USB) can be unrecognizable.

• USB flash memory reader (such as CF, SD, microSD, etc.) or external- HDD type devices may be
unrecognized.

• Music files protected by DRM (DIGITAL RIGHTS MANAGEMENT) are not recognizable.

• The data in the USB memory may be lost while using this AUDIO. It is recommeded to back up important data on a personal storage device.

• Please avoid using USB memory products which can be used as key chains or cellular phone accessories as they could cause damage to the USB jack. Please make certain only to use plug type connector products as shown below.

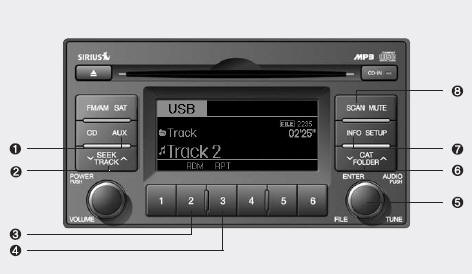

USING USB(PA910L, SIRIUS SATELLITE RADIO MODEL) (IF EQUIPPED)
USING USB(PA910L, SIRIUS SATELLITE RADIO MODEL) (IF EQUIPPED)

1. USB Selection Button 2. TRACK Moving Button
3. RANDOM Playback Button 4. REPEAT Button
5. SEARCH Knob & ENTER Button 6. FOLDER Moving Button
7. INFO Selection Button 8. SCAN Selection Button

1. USB Selection Button If USB is connected, it switches to the USB mode from the other mode to play the song files stored in the USB.

If no CD and auxiliary device is not connected, it displays "NO Media" for 3 seconds and returns to the previous mode.

2.TRACK Moving Button
• Press the [TRACK ] button for less than 0.8 second to play from the beginning of the song currently played. Press the button for less than 0.8 second and press it again within 1 seconds to move and play the previous track. Press the button for 0.8 second or longer to play the song in reverse direction in fast speed.

• Press the [SEEK ] button for less than 0.8 second to move to the nexttrack.

Press the button for 0.8 second or longer to play the song in forward direction in fast speed.

3. RANDOM Playback Button Press this button for less than 0.8 second to activate 'RDM' mode and more than 0.8 second to activate 'ALL RDM' mode.

• RDM : Only files in a folder are played back in a random sequence.

• ALL RDM : All files in a USB memory are played back in the random sequence.

4. REPEAT Button
Press this button for less than 0.8 second to activate 'RPT' mode and more than 0.8 second to activate 'FLD RPT' mode.

• RPT : Only a file is repeatedly played back.

• FLD RPT : Only files in a folder are repeatedly played back.

5. SEARCH Knob & ENTER Button
Turn this button clockwise to display the songs next to the currently played song.

Turn the button counterclockwise to display the songs before the currently played song.

Press the button to skip and play the selected song.

6. FOLDER Moving Button
• Press [FOLDER ] to access the first sub folder of the current folder and play the first song in the folder.

Press TUNE/ENTER knob to move to the folder displayed. It will play the first song in the folder.

• Press [CAT ] to access the main folder (root directory) and to play the first song in the root directory.

7. INFO Selection Button Displays the information of the file currently played in the order of FILE NAME ➟ TITLE ➟ ARTIST ➟ ALBUM ➟ FOLDER ➟ TOTAL FILE ➟ NORMAL DISPLAY ➟ FILE NAME ➟... (Displays no information if the file has no song information.) 8. SCAN Selection Button Plays 10 seconds of each song in the USB device.

Press the button once again to cancel scanning.

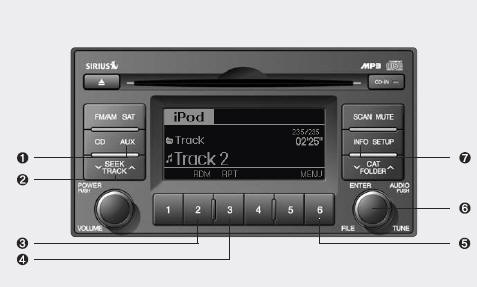

RUNNING iPod®(PA910L, SIRIUS SATELLITE RADIO MODEL) (IF EQUIPPED)
RUNNING iPod®(PA910L, SIRIUS SATELLITE RADIO MODEL) (IF EQUIPPED)

1. iPod Selection Button 2. TRACK Moving Button
3. RANDOM Playback Button 4. REPEAT Button
5. CATEGORY Selection Button 6. SEARCH Knob & ENTER Button 7. INFO Selection Button

In case the iPod exclusive cable is connected to the multiple terminal inside the console on the right hand side of the driver's seat. When the iPod is connected, the 'iPod' icon will be displayed on the top left corner of the display screen.

1. iPod Selection Button If iPod is connected, it switches to the iPod mode from the CD mode to play the song files stored in the iPod. If no CD and auxiliary device is not connected, it displays "NO Media" for 3 seconds and returns to the previous mode.

2.TRACK Moving Button
• Press the [TRACK ] button for less than 0.8 second to play from the beginning of the song currently played. Press the button for less than 0.8 second and press it again within 1 seconds to move and play the previous track. Press the button for 0.8 second or longer to play the song in reverse direction in fast speed.

• Press the [SEEK ] button for less than 0.8 second to move to the next track. Press the button for 0.8 second or longer to play the song in forward direction in fast speed.

3. RANDOM Playback Button Press the button for less than 0.8 second to activate or deactivate the random playback of the songs within the current category.

Press the button for longer than 0.8 second to randomly play all songs in the entire album of the iPod.

Press the button once again to cancel the mode.

4. REPEAT Button
Repeats the song currently played.

5. CATEGORY Selection Button Moves to the upper category from currentlyplayed category of the iPod.

To move to(play) the category(song) displayed, MENU(preset6) You will be able to search through the lower category of the selected category.

The order of iPod's category is SONG, ALBUMS, ARTISTS, GENRES, and iPod.

6. SEARCH Knob & ENTER Button
When you turn the button clockwise, it will display the songs(category) next to the song currently played(category in the same level).

Also, when you turn the button counterclockwise, it will display the songs(category) before the song currently played(category in the same level).

If you want to listen to the song displayed in the song category, press the button, then it will skip to the selected song and play.

7. INFO Selection Button Displays the information of the file currently played in the order of TITLE ➟ ARTIST ➟ ALBUM ➟ NORMAL DISPLAY ➟ TITLE ➟... (Displays no information if the file has no song information.)

NOTICE FOR USING iPod DEVICE
• Some iPod models might not support the communication protocol and the files will not be played.

(iPod models supported: Mini, 4G, Photo, Nano, 5G)
• The order of search or playback of songs in the iPod can be different from the order searched in the audio system.

• If the iPod crashes due to its own malfunction, reset the iPod. (Reset: Refer to iPod manual)
• An iPod may not operate normally on low battery.

CAUTION IN USING
iPod DEVICE
• You need the power cable exclusive for an iPod in order to operate an iPod with the buttons on the audio system. The PC cable provided by Apple may cause a malfunction and do not use it for vehicle use.

• When connecting the device with an iPod cable, push in the jack fully not to interfere with communication.

• When adjusting the sound effects of an iPod and the audio system, the sound effects of both devices will overlap and might reduce or distort the quality of the sound.

• Deactivate (turn off) the equalizer function of an iPod when adjusting the audio system’s volume, and turn off the equalizer of the audio system when using the equalizer of an iPod.

• When the iPod cable is connected, the system can be switched to the AUX mode even without the iPod device and can cause noise.

Disconnect the iPod cable when you are not using the iPod device.

• When the iPod is not used for the audio system, the iPod cable has to be separate from iPod devices.

Original display of iPod may not be displayed.

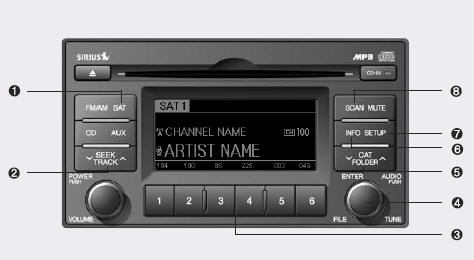

SIRIUS SATELLITE RADIO(PA910L, SIRIUS SATELLITE RADIO MODEL) (IF EQUIPPED)
SIRIUS SATELLITE RADIO(PA910L, SIRIUS SATELLITE RADIO MODEL) (IF EQUIPPED)

1. SATELLITE RADIO Selection Button 2. Channel Selection Button 3. Preset Selection Button 4. TUNE Knob and ENTER Button 5. CAT/FOLDER Button
6. INFO Selection Button 7. SETUP Button
8. SCAN Button

How to Use SIRIUS Satellite Radio
Your vehicle is equipped with a 3 month complimentary period of SIRIUS Satellite Radio so you have access to over 130 channels of music, information, and entertainment programming.

Activation
In order to extend or reactivate your subscription to SIRIUS Satellite Radio, you will need to contact SIRIUS Customer Care at 888-539-7474. Have your 12 digit SID (Sirius Identification Number)/ESN (Electronic Serial Number) ready. To retrieve the SID/ESN, turn on the radio, press the [SAT] button and tune to channel zero. Please note that the vehicle will need to be turned on, in Sirius mode, and have an unobstructed view of the sky in order for the radio to receive the activation signal.

1. SATELLITE RADIO Selection Button(SIRIUS Satellite Radio) Press the [SAT] button to switch to SIRIUS Satellite Radio. It cycles through the different bands as noted below.

SAT1 ➟ SAT2 ➟ SAT3 ➟ SAT1 ➟...

2. Channel Selection Button • Press [TRACK ] or [SEEK ] button for less than 0.8 second to select previous or next channel.

• Press [TRACK ] or [SEEK ] button for 0.8 or longer to continuously move to previous or next channel.

• If "CATEGORY" Icon is displayed at the top of the screen, channel up/down is done through the channels within current category.

3. Preset Selection Button • Push [1]~[6] buttons less than 0.8 second to play the channel saved in each button.

• Hold down the [PRESET] button for 0.8 second or longer to save current channel.

An audible beep will play to confirm the preset is stored.

4. TUNE Knob and ENTER Button While listening to SIRIUS broadcast, rotate this knob to the right or left to search other channels while listening to current channels and push this knob to select what you want to listen to.

(Turn to the right to search higher channels and left lower channels) 5. CAT/FOLDER Button
• Press [CAT ] or [FOLDER ] button to enter the Category List Mode, it displays cateogry items and highlights the category that currently tuned channel belongs to.

• On Category List Mode, press these buttons to navigate category list.

• Press [ENTER] button to select the lowest channel in highlighted category.

• If channel is selected by selecting category "CATEGORY" Icon is displayed at the top of the screen.

6. INFO Selection Button Displays the information of the channel currently played by in the order of Artist/ Song title ➟ Category/Channel name ➟ Composer(if available) ➟ Artist/Song title ➟ Category/Channel name ➟... (ART/TITLE Selection)
Displays the information of the channel currently played by in the order of Category/Channel name ➟ Artist/Song title ➟ Composer(if available) ➟ Category /Channel name ➟ Artist/Song title ➟...

(CAT/CH Selection) (If there is no information of COMPOSER NAME, it returns to main display.)
7. SETUP Button
Press this button to adjust to the SCROLL, SIRIUS and adjustment mode.

If no action is taken for 5 seconds after pressing the button, it will return to the previous radio mode.(After entering SETUP mode, move between items using the left,right and PUSH functions of the [TUNE] button.)
The setup item changes from SCROLL ➟ SIRIUS ➟ SCROLL ➟...

8. SCAN Button
• When the button is pressed, it automatically scans the radio stations upwards.

• The SCAN feature steps through each channel, starting from the initial channel, for ten seconds.

• Press the [SCAN] button again to stop the scan feature and to listen to the currently selected channel.

• if "CATEGORY" Icon is displayed at the top of the screen, channel changing is done through the channels in current category.

Troubleshooting
1. Antenna Error
If this message is displayed, the antenna or antenna cable is broken or unplugged. Please consult with your Kia dealership.

2. Acquiring Signal
If this message is displayed, it means that the antenna is covered and that the SIRIUS Satellite Radio signal is not available. Ensure the antenna is uncovered and has a clear view of the sky.

    See also:

    ESC with new Hill-Start Assist available for every new Kia cee'd
    Kia's engineers have worked hard to ensure that new Kia cee'd is one of the safest cars in the C-segment and has the highest levels of active and passive safety, to fully satisfy the ever increasi ...

    How to use this manual
    We want to help you get the greatest possible driving pleasure from your vehicle. Your Owner’s Manual can assist you in many ways. We strongly recommend that you read the entire manual. In order ...

    Kia Cee'd 1.6 CRDi
    Journalistic duties required me, the other week, to drive to the training ground of a Premier League football club. Now, a number of cars come to mind that would be entirely suitable for keeping a ...
