Engine compartment

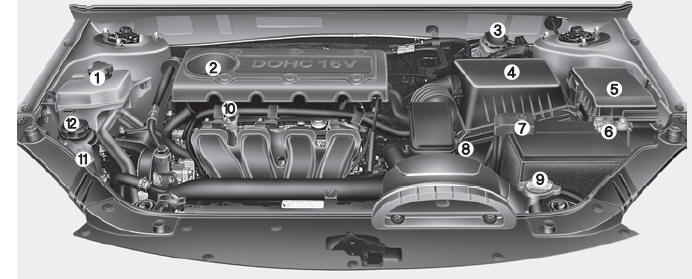

Gasoline Engine (2.4L)
Gasoline Engine (2.4L)

1. Engine coolant reservoir 2. Engine oil filler cap 3. Brake fluid reservoir 4. Air cleaner
5. Fuse box
6. Negative battery terminal 7. Positive battery terminal 8. Auto transaxle oil dipstick* 9. Radiator cap
10. Engine oil dipstick
11. Windshield washer fluid reservoir 12. Power steering fluid reservoir* * : if equipped
* The actual engine room in the vehicle may differ from the illustration.

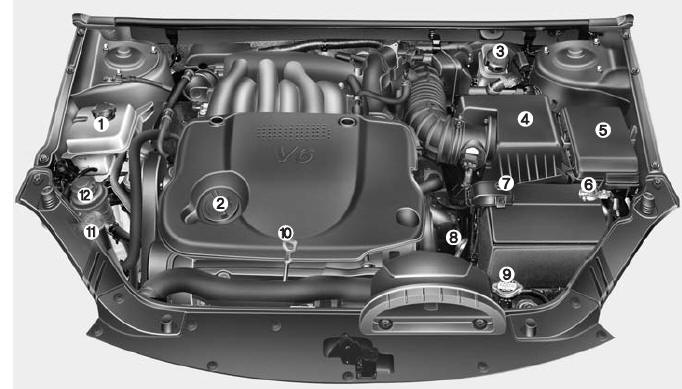

Gasoline Engine (2.7L)
Gasoline Engine (2.7L)

1. Engine coolant reservoir 2. Engine oil filler cap 3. Brake fluid reservoir 4. Air cleaner
5. Fuse box
6. Negative battery terminal 7. Positive battery terminal 8. Auto transaxle oil dipstick* 9. Radiator cap
10. Engine oil dipstick
11. Windshield washer fluid reservoir 12. Power steering fluid reservoir* * : if equipped
* The actual engine room in the vehicle may differ from the illustration.
