Keys
Record your key number

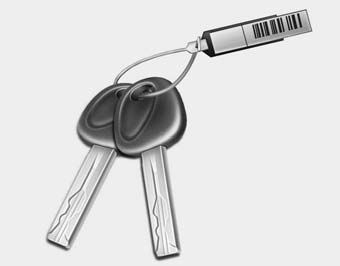

The key code number is stamped on the bar code tag attached to the key set.
Should you lose your keys, this number will enable an authorized KIA dealer to duplicate the keys easily. Remove the bar code tag and store it in a safe place. Also, record the code number and keep it in a safe place (not in the vehicle).

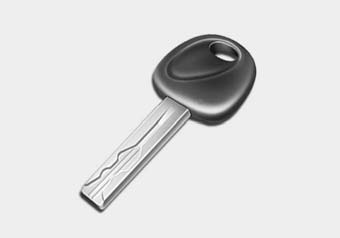

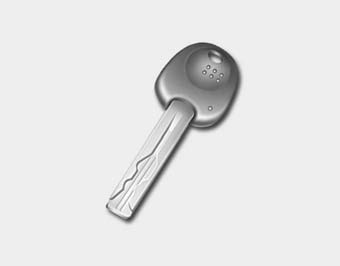

Type A
Type B
Key operations
Used to start the engine, lock and unlock the doors, lock and unlock the glove box, and open the trunk.

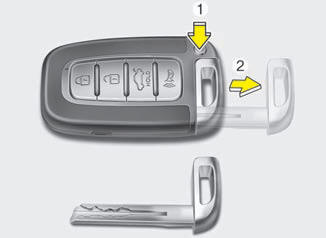

Type B
To remove the mechanical key, press and hold the release button and remove the mechanical key.
To reinstall the mechanical key, put the key into the hole and push it until a click sound is heard.
WARNING:
- Ignition key.
Leaving children unattended in a vehicle with the ignition key is dangerous even if the key is not in the ignition. Children copy adults and they could place the key in the ignition.
The ignition key would enable children to operate power windows or other controls, or even make the vehicle move, which could result in serious bodily injury or even death.
Never leave the keys in your vehicle with unsupervised children.
WARNING:
Use only KIA original parts for the
ignition key in your vehicle. If an
aftermarket key is used, the ignition
switch may not return to ON after
START. If this happens, the starter
will continue to operate causing
damage to the starter motor and
possible fire due to excessive current
in the wiring.
Immobilizer system (if equipped)
Your vehicle is equipped with an electronic engine immobilizer system to reduce the risk of unauthorized vehicle use.
Your immobilizer system is comprised of a small transponder in the ignition key and electronic devices inside the vehicle.
With the immobilizer system, whenever you insert your ignition key into the ignition switch and turn it to ON, it checks and determines and verifies that the ignition key is valid.
If the key is determined to be valid, the engine will start.
If the key is determined to be invalid, the engine will not start.
To deactivate the immobilizer system:
Insert the ignition key into the key cylinder and turn it to the ON position.
To activate the immobilizer system:
Turn the ignition key to the OFF position.
The immobilizer system activates automatically.
Without a valid ignition key for your vehicle, the engine will not start.
WARNING:
In order to prevent theft of your
vehicle, do not leave spare keys
anywhere in your vehicle. Your
Immobilizer password is a customer
unique password and should
be kept confidential. Do not leave
this number anywhere in your vehicle.
NOTICE:
When starting the engine, do not use the
key with other immobilizer keys around.
Otherwise the engine may not start or may stop soon after it starts. Keep each key separate in order to avoid a starting malfunction.
CAUTION:
Do not put metal accessories near
the ignition switch.
The engine may not start because the metal accessories may interrupt the transponder signal from transmitting normally.
NOTICE:
If you need additional keys or lose your
keys, consult an authorized KIA dealer.
CAUTION:
The transponder in your ignition
key is an important part of the
immobilizer system. It is designed
to give years of trouble-free service,
however you should avoid exposure
to moisture, static electricity
and rough handling. Immobilizer
system malfunction could occur.
CAUTION:
Do not change, alter or adjust the
immobilizer system because it
could cause the immobilizer system
to malfunction and should only
be serviced by an authorized KIA
dealer.
Malfunctions caused by improper alterations, adjustments or modifications to the immobilizer system are not covered by your vehicle manufacturer warranty.
This device complies with Industry Canada Standard RSS-210.
Operation is subject to the following two
conditions:
1. This device may not cause harmful
interference, and
2. This device must accept any interference
received, including interference
that may cause undesired operation.
WARNING:
Changes or modifications not
expressly approved by the party
responsible for compliance could
void the user’s authority to operate
the equipment. If the keyless entry
system is inoperative due to
changes or modifications not
expressly approved by the party
responsible for compliance, it will
not be covered by your manufacturer’s
vehicle warranty.
"Limp Home" Mode and Related Procedures
If the immobilizer warning indicator blinks for five seconds when the ignition key is turned to the "ON" position, this indicates the immobilizer system requires service.
The engine cannot be started without using the procedure below.
The following procedure describes how to start the engine using the limp home function (0, 1, 2, 3 as a sample password).
NOTICE:
You can get a limp home password when
the vehicle is first delivered to you. If
you do not have a password, consult
your authorized KIA dealer.
1.To activate the password, turn the ignition key "ON" and "OFF" according to the digit numbers. The immobilizer indicator will blink along with the operation of the ignition key. For example, turn the ignition key once for digit number "1", and twice for "2", and so on. For the digit number "0", you must cycle the ignition key 10 times.
2.Wait for 3~10 seconds.
3.You may set the remaining number of digits by following steps 1 and 2.
4. If all of the four password digits have been successfully entered, turn the ignition key "ON" and check that the immobilizer indicator illuminates. From this time, you have to start your engine within 30 seconds. If you try to start your engine after 30 seconds, your engine will not start.
NOTICE:
If the engine stalls while driving in the
"limp home" mode, you can start your
engine within 3 seconds without reentering
the password.
If the immobilizer indicator blinks for five seconds, you must re-enter the password (steps 1~4).
After performing the limp home activation procedure, consult with your authorized KIA dealer as soon as possible.
CAUTION:
• If the password is entered incorrectly
three consecutive times,
wait for about one hour to perform
the limp home activation
procedure again.
• If you cannot start your engine using the limp home activation procedure, have your vehicle towed by an authorized KIA dealer.
