Label information
There are several important labels and identification numbers located on your vehicle. The label locations are identified in the illustrations shown.

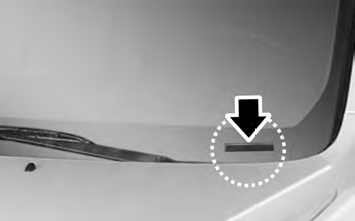

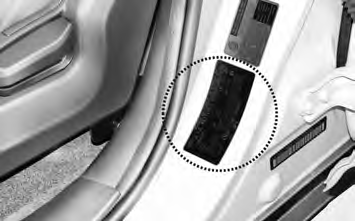

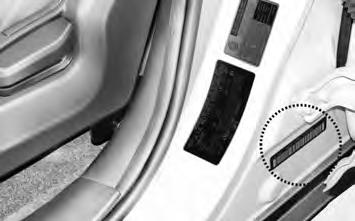

Vehicle identification number
(VIN)

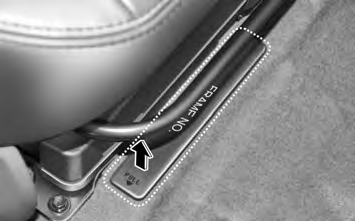

To check the frame number under
the passenger seat, remove the
cover by pulling one side marked
with “PULL”.

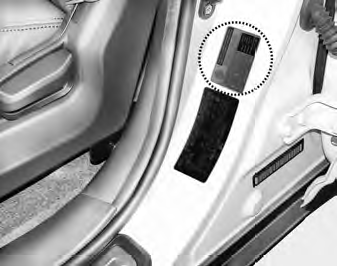

Tire specification / pressure label

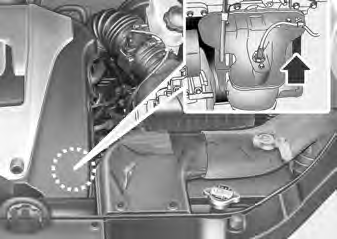

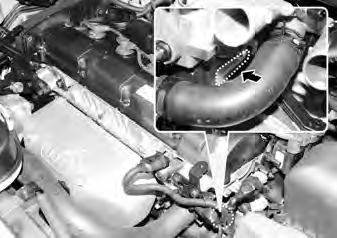

Engine Number
