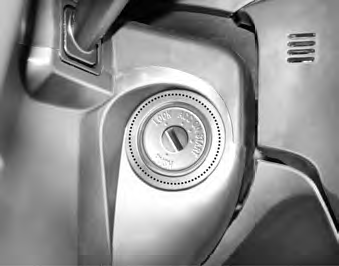

Ignition switch

Illuminated ignition switch
(if equipped)
Whenever a door is opened, the ignition
switch will be illuminated for your
convenience, provided the ignition
switch is not in the ON position. The
light will go off approximately 10 seconds
after closing the door or when
the ignition switch is turned on.

Ignition switch and anti-theft
steering column lock

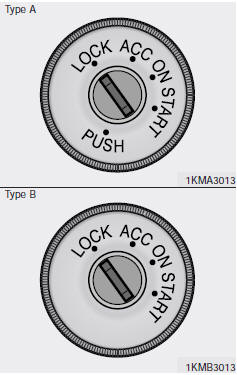

Ignition switch position
LOCK
The steering wheel locks to protect
against theft. The ignition key can be
removed only in the LOCK position.
When turning the ignition switch to the LOCK position, push the key inward at the ACC position (Type A) and turn the key toward the LOCK position.
ACC (Accessory)
The steering wheel is unlocked and
electrical accessories are operative.
ON
The warning lights can be checked
before the engine is started. This is
the normal running position after the
engine is started.
Do not leave the ignition switch ON if the engine is not running to prevent battery discharge.
START
Turn the ignition key to the START
position to start the engine. The
engine will crank until you release
the key; then it returns to the ON
position. The brake warning lamp
can be checked in this position.
NOTICE
If difficulty is experienced turning
the ignition switch to the ACC position,
turn the key while turning the
steering wheel right and left to
release the tension.
WARNING
When you intend to park or stop
the vehicle with the engine on,
be careful not to depress the
accelerator pedal for a long
period of time. It may overheat
the engine or exhaust system
and cause fire.
WARNING - Ignition key • Never turn the ignition switch to LOCK or ACC while the vehicle is moving. This would result in loss of directional control and braking function, which could cause an immediate accident.
• Before leaving the driver’s seat, always make sure the shift lever is engaged in 1st gear for manual transaxle or P (Park) for automatic transaxle, set the parking brake fully and shut the engine off.
Unexpected and sudden vehicle
movement may occur if
these precautions are not
taken.
• Never reach for the ignition switch, or any other controls through the steering wheel while the vehicle is in motion.
The presence of your hand or arm in this area could cause a loss of vehicle control, an accident and serious bodily injury or death.
• Do not place any movable objects around the driver’s seat as they may move while driving, interfere with the driver and lead to an accident.
Automatic transaxle
When turning the ignition switch to
the LOCK position, the shift lever
must be in the P (Park) position.
