Rearview camera

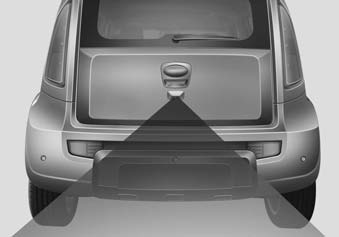

The rearview camera will activate when the back-up light is ON with the ignition switch ON and the shift lever in the R (Reverse) position.

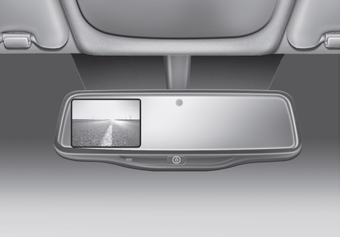

This system is a supplemental system that shows behind the vehicle through the rearview display mirror while backing- up.
WARNING
• This system is a supplementary
function only. It is the responsibility
of the driver to always
check the inside/outside rearview
mirror and the area behind the
vehicle before and while backing
up because there is a dead zone
that can't see through the camera.
• Always keep the camera lens clean. If lens is covered with foreign matter, the camera may not operate normally.
