Engine compartment

2.4L
2.4L

1. Engine Coolant Reservoir 2. Windshield Washer Fluid Reservoir 3. Power Steering Fluid Reservoir* 4. Radiator Cap
5. Engine Oil Filler Cap 6. Engine Oil Dipstick
7. Brake Fluid Reservoir 8. Air Cleaner
9. Fuse Box
10. Negative Battery Terminal 11. Positive Battery Terminal * if equipped
The actual engine room in the vehicle may differ from the illustration.

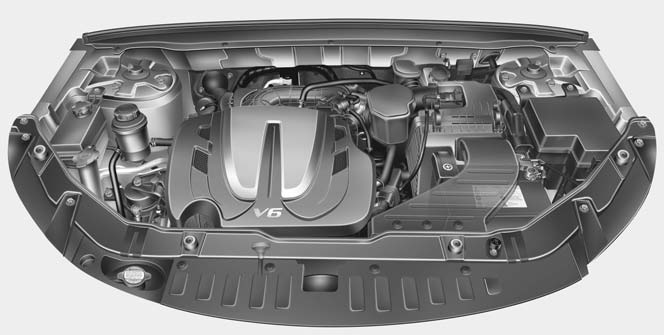

3.5L
3.5L

1. Engine coolant reservoir 2. Engine oil filler cap 3. Brake fluid reservoir 4. Air cleaner
5. Fuse box
6. Negative battery terminal 7. Positive battery terminal 8. Radiator cap
9. Engine oil dipstick
10. Power steering fluid reservoir* 11. Windshield washer fluid reservoir * if equipped
The actual engine room in the vehicle may differ from the illustration.
