Windows

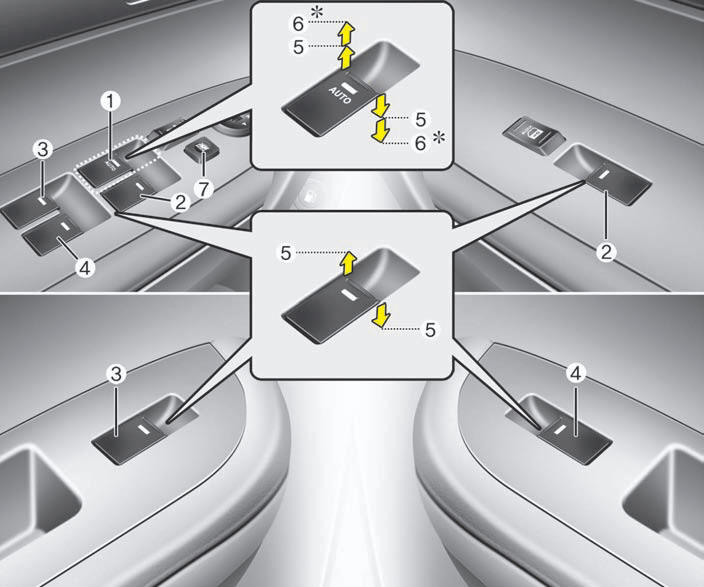

(1) Driver’s door power window switch
(1) Driver’s door power window switch (2) Front passenger’s door power window switch (3) Rear door (left) power window switch (4) Rear door (right) power window switch (5) Window opening and closing (6) Automatic power window up*/down (Driver’s window) (7) Power window lock switch * if equipped

NOTICE
In cold and wet climates, power windows may not work properly due to freezing conditions.

Power windows
The ignition switch must be in the ON position for power windows to operate.

Each door has a power window switch that controls the door's window. The driver has a power window lock button which can block the operation of passenger windows. The power windows can be operated for approximately 30 seconds after the ignition key is removed or turned to the ACC or LOCK position. However, if the front doors are opened, the power windows cannot be operated even within the 30 second period.

NOTICE
While driving with the rear windows down or with the sunroof (if equipped) in an open (or partially open) position, your vehicle may demonstrate a wind buffeting or pulsation noise. This noise is a normal occurrence and can be reduced or eliminated by taking the following actions. If the noise occurs with one or both of the rear windows down, partially lower both front windows approximately one inch. If you experience the noise with the sunroof open, slightly reduce the size of the sunroof opening.

Window opening and closing


Window opening and closing The driver’s door has a master power window switch that controls all the windows in the vehicle.

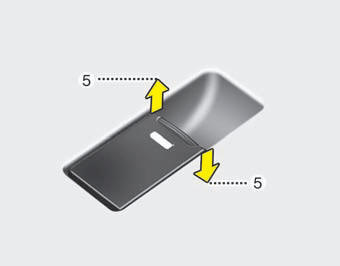

To open or close a window, press down or pull up the front portion of the corresponding switch to the first detent position (5).

Auto down window


Auto down window
(Driver’s window, if equipped) Pressing the power window switch momentarily to the second detent position (6) completely lowers the driver’s window even when the switch is released. To stop the window at the desired position while the window is in operation, momentarily pull the switch in the direction opposite of the window’s movement.

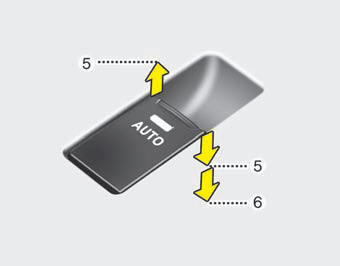

Auto up/down window


Auto up/down window
(Driver's window, if equipped) Pressing or pulling up the power window switch momentarily to the second detent position (6) completely lowers or lifts the window even when the switch is released. To stop the window at the desired position while the window is in operation, pull up or press down and release the switch.

If the power window does not operate normally, the automatic power window system must be reset as follows: 1. Turn the ignition switch to the ON position.

2. Close the driver’s window and continue pulling up the driver’s power window switch for at least 1 second after the window is completely closed.

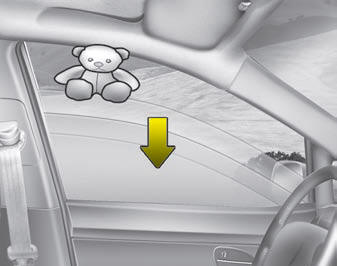

Automatic reversal


Automatic reversal
If the upward movement of the window is blocked by an object or part of the body, the window will detect the resistance and will stop upward movement. The window will then lower approximately 30 cm (11.8 in.) to allow the object to be cleared.

If the window detects the resistance while the power window switch is pulled up continuously, the window will stop upward movement then lower approximately 2.5 cm (1 in.). And if the power window switch is pulled up continuously again within 5 seconds after the window is lowered by the automatic window reversal feature, the automatic window reversal will not operate.

NOTICE
The automatic reverse feature for the driver’s window is only active when the “auto up” feature is used by fully pulling up the switch. The automatic reverse feature will not operate if the window is raised using the halfway position on the power window switch.

WARNING
Always check for obstructions before raising any window to avoid injuries or vehicle damage. If an object less than 4 mm (0.16 in.) in diameter is caught between the window glass and the upper window channel, the automatic reverse window may not detect the resistance and will not stop and reverse direction.

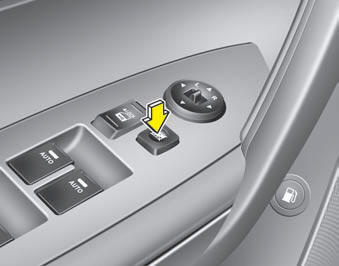

Power window lock button


Power window lock button • The driver can disable the power window switches on the passenger doors by pressing the power window lock button located on the driver’s door to the LOCK position (pressed).

• When the power window lock button is in the LOCK position (pressed), the driver’s master control cannot operate the passenger door power windows.

CAUTION
• To prevent possible damage to the power window system, do not open or close two windows or more at the same time. This will also ensure the longevity of the fuse.

• Never try to operate the main switch on the driver's door and the individual door window switch in the opposite directions at the same time. If this is done, the window will stop and cannot be opened or closed.

WARNING - Windows
• NEVER leave the ignition key in the vehicle.

• NEVER leave any child unattended in the vehicle. Even very young children may inadvertently cause the vehicle to move, entangle themselves in the windows, or otherwise injure themselves or others.

• Always double check to make sure all arms, hands, head and other obstructions are safely out of the way before closing a window.

• Do not allow children to play with the power windows. Keep the driver’s door power window lock
button in the LOCK position (pressed). Serious injury can result from unintentional window operation by the child.

• Do not extend any head or arms outside the window while driving.
