Sunroof

If your vehicle is equipped with this feature,

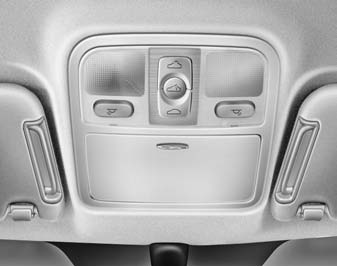

If your vehicle is equipped with this feature, you can slide or tilt your sunroof with the sunroof control buttons located on the overhead console.

1. Slide button
2. Tilt button
3. Close button
The sunroof can only be opened, closed, or tilted when the ignition switch is in the ON position.

NOTICE:


• In cold and wet climates, sunroof may not work properly due to freezing conditions.

• After washing the car or after there is rain, be sure to wipe off any water that is on the sunroof before operating it.

CAUTION:


Do not continue to press the sunroof control button(s) after the sunroof is in the fully open, closed, or tilt position(s). Damage to the motor or system components could occur.

NOTICE:


The sunroof cannot slide when it is in the tilt position nor can it be tilted while in an open or slide position.

WARNING:


Never adjust the sunshade while driving. This could result in loss of control and an accident that may cause death, serious injury, or property damage.


Sliding the sunroof


Sliding the sunroof

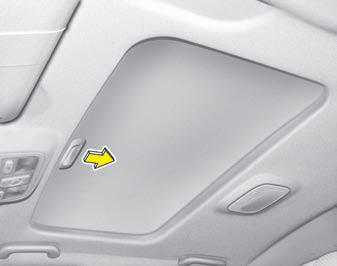

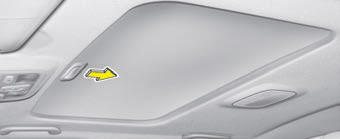

To open the sunroof (autoslide feature), press the slide button (console for more than 0.5 second.) on the overhead
console for more than 0.5 second.

The sunroof will slide all the way open.To stop the sunroof sliding at any point, press any sunroof control button.

To close the sunroof (autoslide feature), press the close button (console for more than 0.5 second.) on the overhead
console for more than 0.5 second.

The sunroof will slide all the way close.To stop the sunroof sliding at any point, press any sunroof control button.

Automatic reversal


Automatic reversal

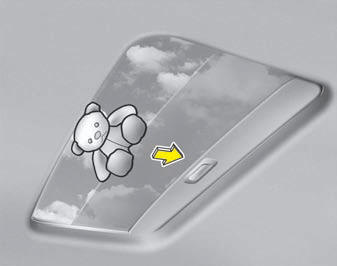

If an object or part of the body is detected while the sunroof is closing automatically, it will reverse direction, and then stop.

Auto reverse function does not work if a tiny obstacle is between the sliding glass and the sunroof sash.You should always check that all passengers and objects are away from the sunroof before closing it.

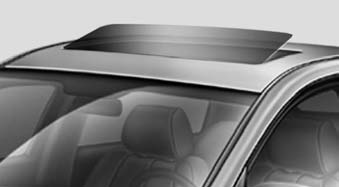

Tilting the sunroof


Tilting the sunroof

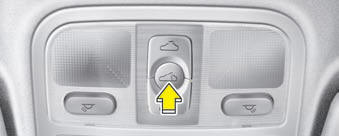

To open the sunroof (autotilt feature), press the tilt button (console for more than 0.5 second.) on the overhead
console for more than 0.5 second.

The sunroof will tilt all the way open. To stop the sunroof tilting at any point, press any sunroof control button.

To close the sunroof, press the close button (hold it until the sunroof is closed.) on the overhead console and
hold it until the sunroof is closed.

WARNING:

- Sunroof.

• Be careful that no heads, hands and body parts are obstructing a closing sunroof.

• Do not extend the face, neck, arms or body outside the sunroof while driving.

• Make sure your hands and head are safely out of the way before closing a sunroof.

CAUTION:


• Periodically remove any dirt that may accumulate on the guide rail.

• If you try to open the sunroof when the temperature is below freezing or when the sunroof is covered with snow or ice, the glass or the motor could be damaged.

• The sunroof is made to slide together with sunshade. Do not leave the sunshade closed while the sunroof is open.

Sunshade


Sunshade

The sunshade will automatically open with the glass panel when the glass panel moves. Close it manually if you want it closed.

Resetting the sunroof

Whenever the vehicle battery is disconnected or discharged, you have to reset your sunroof system as follows: 1. Turn the ignition switch to the ON position and close the sunroof completely.

2. Release the close button.

3. Press and hold the close button until the sunroof has returned to the original position of tilt after it is raised a little higher than the maximum tilt position.

Then, release the button.

4. Press and hold the close button until the sunroof is operated as follows;

TILT DOWN → SLIDE OPEN → SLIDE CLOSE

Then, release the button.

When this is complete, the sunroof system is reset.

CAUTION:


If the sunroof is not reset when the vehicle battery is disconnected or discharged, or corresponding fuse is blown, the sunroof may operate improperly.
