Engine oil and oil filter

Kia Sportage / Kia Sportage owners manual / Maintenance / Engine oil and oil filter


Checking the engine oil level

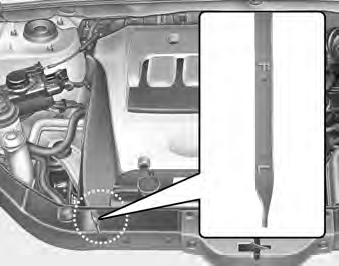

Checking the engine oil level 1. Be sure the vehicle is on level ground.

2. Start the engine and allow it to reach normal operating temperature.

3. Turn the engine off and wait for a few minutes (about 5 minutes) for the oil to return to the oil pan.

4. Pull the dipstick out, wipe it clean, and re-insert it fully.

WARNING - Radiator
hose
Be very careful not to touch the radiator hose when checking or adding the engine oil as it may be hot enough to burn you.

5. Pull the dipstick out again and check the level. The level should be between F and L.


If it is near or at L, add enough oil to


If it is near or at L, add enough oil to bring the level to F. Do not overfill.

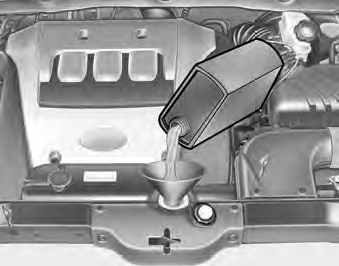

For 2.7L gasoline engine, use a funnel to refill the new oil comfortably.

Use only the specified engine oil.

(Refer to "Recommended lubricants or capacities" in section 8.) Changing the engine oil and filter
Have engine oil and filter changed by an Authorized Kia Dealer according to the Maintenance Schedule at the beginning of this section.
