Tonneau cover


Use the tonneau cover to hide items stored in the cargo area.

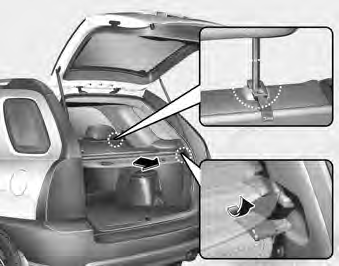

• To use the front shade of the tonneau cover, pull the hook forward and hang the hook on the headrest pole.
NOTICE
When folding the rear seatback forward,
remove the hook from the
headrest pole. Otherwise, the front
shade of the tonneau cover may be
damaged or malformed.

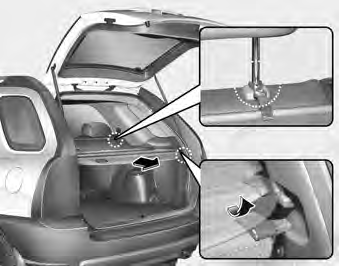

• To use the rear shade of the tonneau cover, pull the handle backward and insert the edges into the slots.

When not in use, place the tonneau cover on the lower portion of cargo area.
CAUTION
• Do not place objects on the
tonneau cover. Such objects
may be thrown about inside
the vehicle and possibly injure
vehicle occupants during an
accident or when braking.
• Never allow anyone to ride in the luggage compartment. It is designed for luggage only.
• Maintain the balance of the vehicle and locate the weight as far forward as possible.
NOTICE
Since the tonneau cover may be
damaged or malformed, do not put
the luggage on it when it is used.
