Towing

Towing service


Towing service

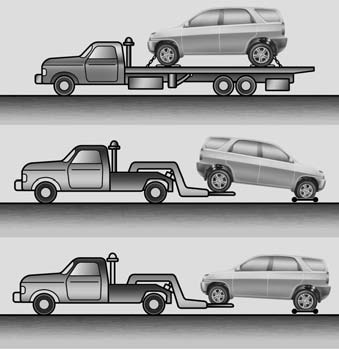

If emergency towing is necessary, we recommend having it done by an authorized KIA dealer or a commercial towtruck service. Proper lifting and towing procedures are necessary to prevent damage to the vehicle. The use of wheel dollies or flatbed is recommended.

For trailer towing guidelines information, refer to “Trailer towing” in section 5.

On 4WD vehicles, your vehicle must be towed with a wheel lift and dollies or flatbed equipment with all the wheels off the ground.

CAUTION
The 4WD vehicle should never be towed with the wheels on the ground. This can cause serious damage to the transaxle or the 4WD system.

On 2WD vehicles, it is acceptable to tow the vehicle with the rear wheels on the ground (without dollies) and the front wheels off the ground.

If any of the loaded wheels or suspension components are damaged or the vehicle is being towed with the front wheels on the ground, use a towing dolly under the front wheels.

When being towed by a commercial tow truck and wheel dollies are not used, the front of the vehicle should always be lifted, not the rear.

WARNING
If your vehicle is equipped with side and curtain air bag, set the ignition switch to LOCK or ACC position when the vehicle is being towed.

The side and curtain air bag may deploy when the ignitions is ON, and the rollover sensor detects the situation as a rollover.


CAUTION


CAUTION

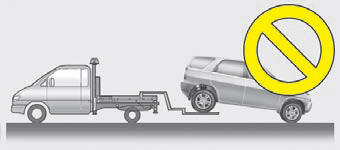

• Do not tow the vehicle backwards with the front wheels on the ground as this may cause damage to the vehicle.

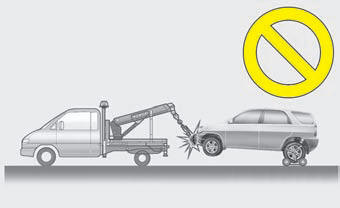

• Do not tow with sling-type equipment.

Use wheel lift or flatbed equipment.

When towing your vehicle in an emergency without wheel dollies :
1. Set the ignition switch in the ACC position.

2. Place the transaxle shift lever in N (Neutral).

3. Release the parking brake.

CAUTION
Failure to place the transaxle shift lever in N (Neutral) may cause internal damage to the transaxle.

Emergency towing


Emergency towing
If towing is necessary, have it done by an authorized KIA dealer or a commercial tow truck service.

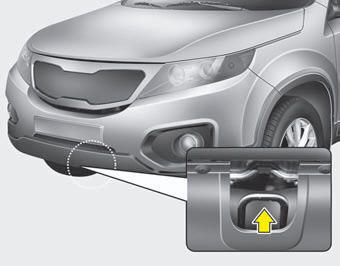

If towing service is not available in an emergency, your vehicle may be temporarily towed using a cable or chain secured to the emergency towing hook under the front (or rear) of the vehicle.

Use extreme caution when towing the vehicle. A driver must be in the vehicle to steer it and operate the brakes.

Towing in this manner may be done only on hard-surfaced roads for a short distance and at low speeds. Also, the wheels, axles, power train, steering and brakes must all be in good condition.

• Do not use the tow hooks to pull a vehicle out of mud, sand or other conditions from which the vehicle cannot be driven out under its own power.

• Avoid towing a vehicle heavier than the vehicle doing the towing.

• The drivers of both vehicles should communicate with each other frequently.

CAUTION
• Attach a towing strap to the tow hook.

• Using a portion of the vehicle other than the tow hooks for towing may damage the body of your vehicle.

• Only use a cable or chain specifically intended for use in towing vehicles. Securely fasten the cable or chain to the towing hook provided.

• Before emergency towing, check that the hook is not broken or damaged.

• Fasten the towing cable or chain securely to the hook.

• Do not jerk the hook. Apply it steadily and with even force.

• To avoid damaging the hook, do not pull from the side or at a vertical angle.

Always pull straight ahead.

WARNING
Use extreme caution when towing the vehicle.

• Avoid sudden starts or erratic driving maneuvers which would place excessive stress on the emergency towing hook and towing cable or chain. The hook and towing cable or chain may break and cause serious injury or damage.

• If the disabled vehicle cannot be moved, do not forcibly continue the towing. Contact an authorized KIA dealer or a commercial tow truck service for assistance.

• Tow the vehicle as straight ahead as possible.

• Keep away from the vehicle during towing.

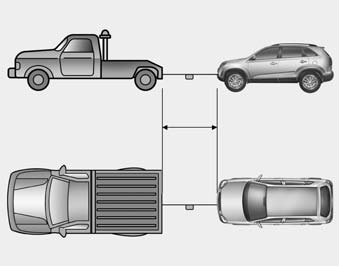

• Use a towing strap less than 5 m (16


• Use a towing strap less than 5 m (16 feet) long. Attach a white or red cloth (about 30 cm (12 inches) wide) in the middle of the strap for easy visibility.

• Drive carefully so that the towing strap is not loose during towing.

Emergency towing precautions • Turn the ignition switch to ACC so the steering wheel isn’t locked.

• Place the transaxle shift lever in N (Neutral).

• Release the parking bake.

• Press the brake pedal with more force than usual since you will have reduced brake performance.

• More steering effort will be required because the power steering system will be disabled.

• If you are driving down a long hill, the brakes may overheat and brake performance will be reduced. Stop often and let the brakes cool off.

CAUTION - Automatic
transaxle
• If the car is being towed with all four wheels on the ground, it can be towed only from the front. Be sure that the transaxle is in neutral.

Be sure the steering is
unlocked by placing the ignition switch in the ACC position. A driver must be in the towed vehicle to operate the steering and brakes.

• To avoid serious damage to the automatic transaxle, limit the vehicle speed to 15 km/h (10 mph) and drive less than 1.5 km (1 mile) when towing.

• Before towing, check the automatic transaxle fluid leak under your vehicle. If the automatic transaxle fluid is leaking, a flatbed equipment or towing dolly must be used.
