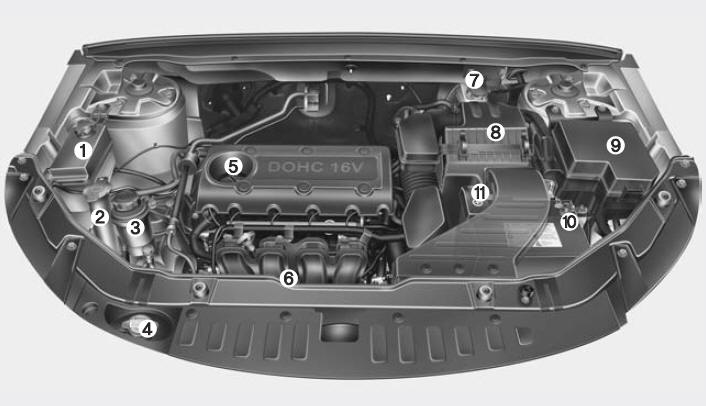

Engine compartment

1. Engine Coolant Reservoir ....................7-
1. Engine Coolant Reservoir ....................7- 2. Windshield Washer Fluid Reservoir .........7 3. Power Steering Fluid Reservoir*...........7- 4. Radiator Cap....................................6-/7- 5. Engine Oil Filler Cap ............................7- 6. Engine Oil Dipstick ...............................7- 7. Brake Fluid Reservoir...........................7- 8. Air Cleaner ...........................................7- 9. Fuse Box ..............................................7- 10. Negative Battery Terminal..............6-/7- 11. Positive Battery Terminal................6-/7- * if equipped
The actual engine room in the vehicle may differ from the illustration.
