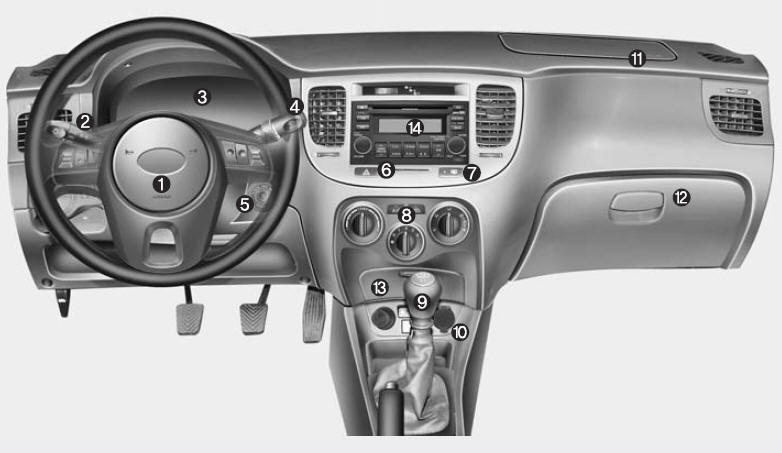

Instrument panel overview
1. Driver’s air bag ..................................3-51
2. Light control / Turn signals ................4-31
3. Instrument cluster .............................4-20
4. Wiper/Washer....................................4-35
5. Ignition switch....................................4- 2
6. Hazard...............................................4-38
7. Rear window defroster ......................4-38
8. Climate control system......................4-39
9. Shift lever ..........................................4- 4
10. Power socket...................................3-77
11. Passenger’s air bag ........................3-52
12. Glove box ........................................3-74
13. Multi box* ........................................3-74
14. Audio controls* ................................3-84
* : if equipped
See also:
Maintenance schedule
Chart symbols:
I- Inspect these items and their related parts. If necessary, correct, clean,
refill, adjust of replace.
R- Replace or change
L- Lubricate.
(1) Refer to the lubricant and co ...
Maintenance services
You should exercise the utmost care to
prevent damage to your vehicle and
injury to yourself whenever performing
any maintenance or inspection procedures.
Should you have any doubts concerning
th ...
Rearview camera
The rearview camera will activate when
the back-up light is ON with the ignition
switch ON and the shift lever in the R
(Reverse) position.
This system is a supplemental system
that shows beh ...
