Remote keyless entry
Type A
Type B

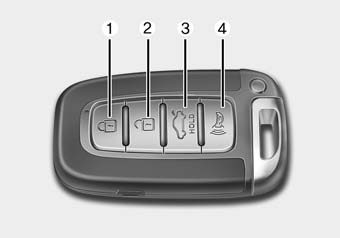

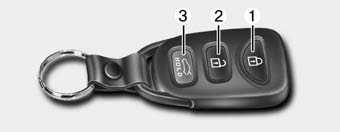

Remote keyless entry system operations
Lock (1)
All doors (and trunk) are locked if the lock button is pressed.
Type A
The hazard warning lights blink if the lock button is pressed once.
The hazard warning lights blink and the chime sounds once if the lock button is pressed once more within 4 seconds to indicate that all doors (and trunk) are locked.
Type B
The hazard warning lights blink and the chime sounds once to indicate that all doors (and trunk) are locked.
However, if any door (or trunk) remains open, the hazard warning lights and the chime will not operate. If all doors (and trunk) are closed after the lock button is pressed, the hazard warning lights blink.
Unlock (2)
The driver's door is unlocked if the unlock button is pressed once. The hazard warning lights will blink twice to indicate that the driver's door is unlocked.
All doors (and trunk) are unlocked if the unlock button is pressed once more within 4 seconds. The hazard warning lights will blink and the chime will sound twice again to indicate that all doors (and trunk) are unlocked.
After depressing this button, the doors (and trunk) will be locked automatically unless you open any door within 30 seconds.
Trunk unlock (3)
The trunk is unlocked if the button is pressed for more than 1 second when all doors are locked.

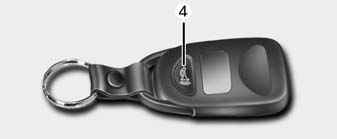

Alarm (4)
The horn sounds and hazard warning lights flash for about 30 seconds if this button is pressed for more than 0.5 seconds.
To stop the horn and lights, press any button on the transmitter.
Transmitter precautions
NOTICE:
The transmitter will not work if any of
following occur:
• The ignition key is in ignition switch.
• You exceed the operating distance limit (about 30 m [90 feet]).
• The battery in the transmitter is weak.
• Other vehicles or objects may be blocking the signal.
• The weather is extremely cold.
• The transmitter is close to a radio transmitter such as a radio station or an airport which can interfere with normal operation of the transmitter.
When the transmitter does not work correctly, open and close the door with the ignition key. If you have a problem with the transmitter, contact an authorized KIA dealer.
CAUTION:
Keep the transmitter away from
water or any liquid. If the keyless
entry system is inoperative due to
exposure to water or liquids, it will
not be covered by your manufacturer’s
vehicle warranty.
This device complies with Industry Canada Standard RSS-210.
Operation is subject to the following two
conditions:
1. This device may not cause harmful
interference, and
2. This device must accept any interference
received, including interference
that may cause undesired operation.
WARNING:
Changes or modifications not
expressly approved by the party
responsible for compliance could
void the user’s authority to operate
the equipment. If the keyless entry
system is inoperative due to
changes or modifications not
expressly approved by the party
responsible for compliance, it will
not be covered by your manufacturer’s
vehicle warranty.
Battery replacement
The transmitter uses a 3 volt lithium battery which will normally last for several years. When replacement is necessary, use the following procedure.

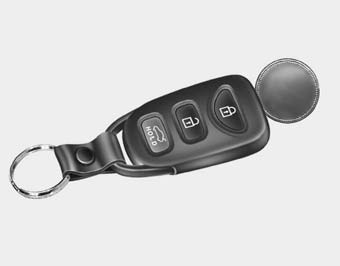

1. Insert a slim tool into the slot and gently pry open the transmitter center cover.

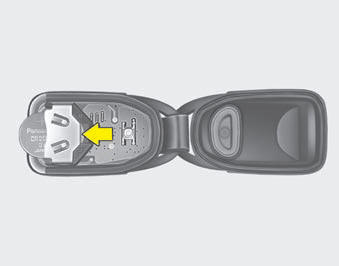

2. Replace the battery with a new battery (CR2032). When replacing the battery, make sure the battery positive “+” symbol faces up as indicated in the illustration.
3. Install the battery in the reverse order of removal.
For replacement transmitters, see an authorized KIA dealer for transmitter reprogramming.
CAUTION:
• The keyless entry system transmitter
is designed to give you
years of trouble-free use, however
it can malfunction if exposed to
moisture or static electricity. If
you are unsure how to use your
transmitter or replace the battery,
contact an authorized KIA dealer.
• Using the wrong battery can cause the transmitter to malfunction.
Be sure to use the correct battery.
• To avoid damaging the transmitter, don't drop it, get it wet, or expose it to heat or sunlight.
CAUTION:
An inappropriately disposed battery
can be harmful to the environment
and human health. Dispose
the battery according to your local
law(s) or regulation.
